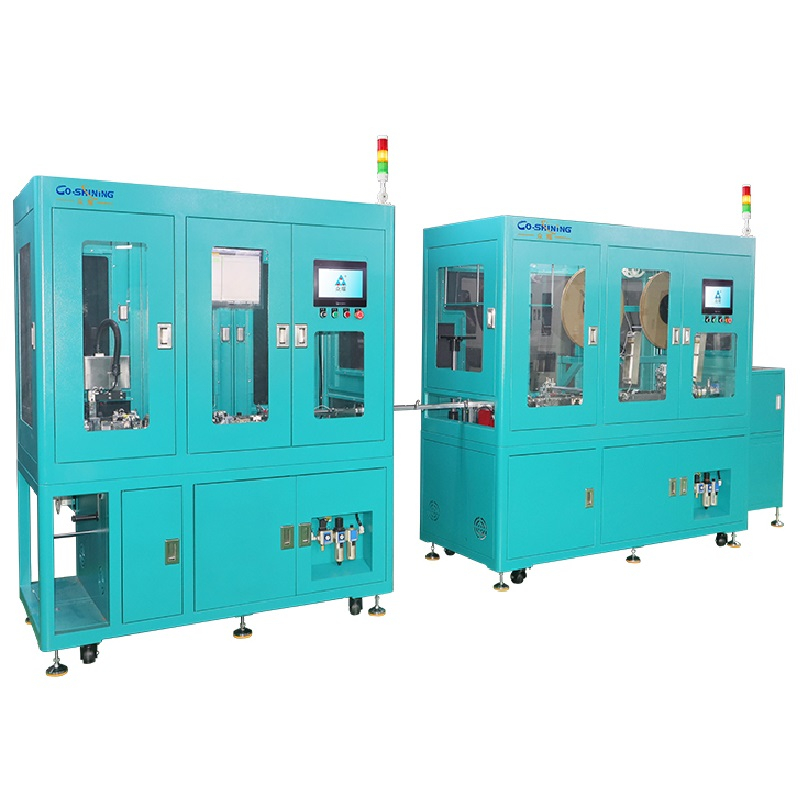

The WAFER Connector Assembly And Testing Equipment is a highly sophisticated, non-standard automation solution engineered to transform raw components into flawless, market-ready electrical connectors. Encased in a sleek, industrial-grade exterior equipped with an intelligent access-controlled safety cover, the machine presents a clean, professional aesthetic that elevates the standard of any modern manufacturing floor. When in active operation, the premium servo-driven mechanisms emit a low, steady hum, reflecting the precision engineering that minimizes internal friction and maximizes energy efficiency. By consolidating multiple disparate assembly stages—ranging from initial terminal insertion and intricate bending to laser marking and final carrier tape packaging—into one continuous, fluid motion, this equipment eradicates the bottlenecks typically associated with manual or semi-automated processes.
Facility managers and production directors will immediately notice a drastic reduction in labor overhead alongside a remarkable stabilization of daily output metrics. The tactile satisfaction of the perfectly crimped and bent terminals, verified instantaneously by integrated visual and electrical diagnostics, ensures that every single unit leaving the line meets the strictest global tolerances. This system does not merely assemble parts; it actively engineers reliability, protecting your brand's reputation from the costly consequences of field failures, client rejections, and disrupted supply chains. It is the ultimate asset for forward-thinking facilities aiming to achieve uncompromised precision and exceptional cost efficiency.
4PIN production capacity | 1500PCS/H |
Defective rate | ≤2% (except for defective incoming materials) |
Applicable products | according to relevant drawings |
Assembly machine size | L4000mm/W1500mm/H1950mm (actual size refers to the final 3D) |
Working voltage | AC220/50HZ |
Working air pressure | 5-6KG (water-free and oil-free) |
Working environment temperature | -10 degrees to 50 degrees |
Working environment humidity | 20 to 90% |
Safety device | leakage protection, emergency stop |
Investing in this automated assembly architecture translates directly to enhanced operational predictability and superior product integrity. The system is meticulously designed to eliminate the variables that typically cause production delays and material waste.
Acoustic and Environmental Refinement: The utilization of premium servo motors ensures a remarkably quiet operational footprint, reducing factory noise fatigue while maintaining high-speed kinetic precision. The integrated suction and dust removal stations keep the internal mechanisms pristine, preventing micro-contaminants from compromising the delicate connectors.
Intelligent Defect Isolation: Rather than discovering faults at the end of a massive batch, the system actively identifies and segregates substandard units in real-time. The product 90° flipping mechanism separates components smoothly, ensuring that only verified, perfect connectors reach the carrier tape packaging stage.
Architectural Modularity: The standardized mechanical structure allows for rapid component swapping and maintenance. This modular approach guarantees that if production requirements shift, the machinery can be adapted efficiently without requiring a complete systemic overhaul, thereby safeguarding your capital investment.
Our engineering team has meticulously addressed the core challenges faced by modern production facilities, delivering a holistic system that excels across all critical operational metrics.
Production Efficiency & Capacity: Maximizing return on investment is paramount for high-volume purchasers. Engineered to process up to 1500 PCS/H for 4PIN configurations, the high-velocity servo drives ensure rapid, low-noise continuous operation. This drastically lowers the per-unit manufacturing cost and empowers facilities to fulfill massive volume orders well within tight delivery windows.
Quality Control & Testing: Component failure is simply not an option. By integrating a three-station CCD vision inspection alongside rigorous conductivity and withstand voltage tests, the system performs an exhaustive physical and electrical audit on every single piece. This dual-layer verification guarantees a yield rate exceeding 98%, virtually eliminating client complaints and costly product returns.
Automation & Process Integration: Streamline your floor with a true \"lights-out\" manufacturing solution. Consolidating 18 distinct stages—from vibration feeding and 4-stage bending to laser marking and carrier tape packaging—this unified architecture removes the need for human intervention, drastically slashing labor expenses and mitigating the risk of human error.
Flexibility & Compatibility: Adapt instantly to shifting market demands. The highly modular framework is customized to your specific WAFER connector drawings. This inherent flexibility extends the equipment's lifecycle, allowing it to accommodate various connector specifications and pin counts without requiring entirely new infrastructure.
Core Components & Stability: Uninterrupted operation relies on superior internal architecture. Built with internationally recognized branded components, intelligent PLC controls, and precise servo-driven kinematics, the machine maintains absolute positional accuracy and unwavering reliability even during relentless, round-the-clock production cycles.
Safety & Maintenance: Minimize downtime and protect your workforce. The sleek industrial exterior houses an intelligent access control system, leakage protection, and emergency stop protocols. Furthermore, the compact right-in and left-out layout simplifies internal access, making routine maintenance swift, intuitive, and unobtrusive.
Selecting the right equipment partner dictates the trajectory of your manufacturing success. We provide more than just machinery; we engineer long-term operational stability and a distinct competitive advantage for our global partners.
Uncompromising Engineering Standards: Every unit is subjected to exhaustive stress testing before deployment. We simulate peak production environments to ensure that the mechanics, pneumatics, and software logic perform flawlessly under pressure, guaranteeing out-of-the-box readiness.
Strategic Resource Allocation: By adopting our fully integrated solutions, your facility can reallocate valuable human resources from repetitive assembly tasks to higher-level quality assurance and facility management, optimizing your overall workforce efficiency and morale.
Future-Proof Technology: Our systems are built with scalability in mind. The intelligent PLC architecture and modular hardware allow for future software updates and mechanical tweaks, ensuring your production line remains at the cutting edge of connector manufacturing technology for years to come.
To assist your engineering and procurement teams, we have compiled the most critical technical inquiries regarding the deployment and operation of this equipment.
The system requires a stable AC 220V / 50HZ power supply and a clean, water-free, and oil-free compressed air source maintained strictly between 5-6 KG of pressure. Ensuring these utilities are consistent is vital for the longevity of the pneumatic cylinders and the accuracy of the servo drives.
While the machine boasts an impressive yield rate of ≥98%, this metric inherently excludes defective incoming materials. The integrated CCD vision inspection and electrical testing stations will automatically detect malformed rubber cores or bent terminals sourced from upstream, segregating them directly into the defective discharge chute without halting the main production flow.
Yes. The servo-driven motion control system is highly programmable via the intuitive, intelligent PLC interface. Your technicians can precisely adjust the bending angles, speed, and force parameters to accommodate the specific geometric tolerances required by your custom WAFER connector drawings.
The laser marking lens and the three-station CCD camera lenses should be inspected and gently wiped with an optical-grade solvent weekly to prevent micro-dust accumulation, despite the machine's robust internal suction system. A comprehensive calibration of the vision system is recommended bi-annually to maintain the highest defect detection accuracy.
The sleek machine cover is electronically interlocked with the main PLC control system. If the enclosure is opened during an active production cycle, the servo drives and pneumatic actuators instantly halt, and the laser marking unit powers down immediately. This completely eliminates the risk of kinetic injury or accidental laser exposure to the operator.
