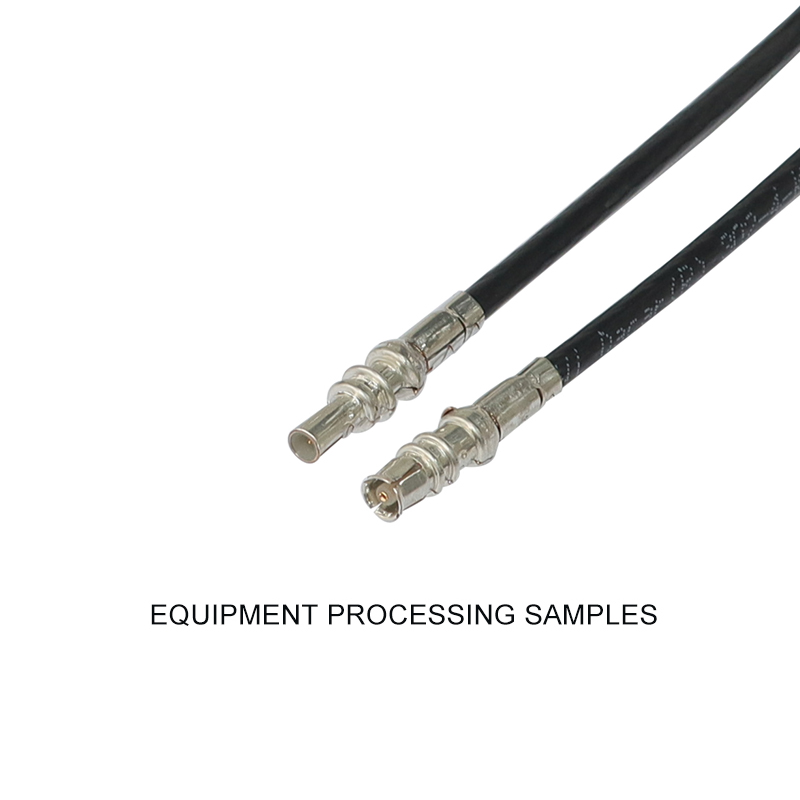

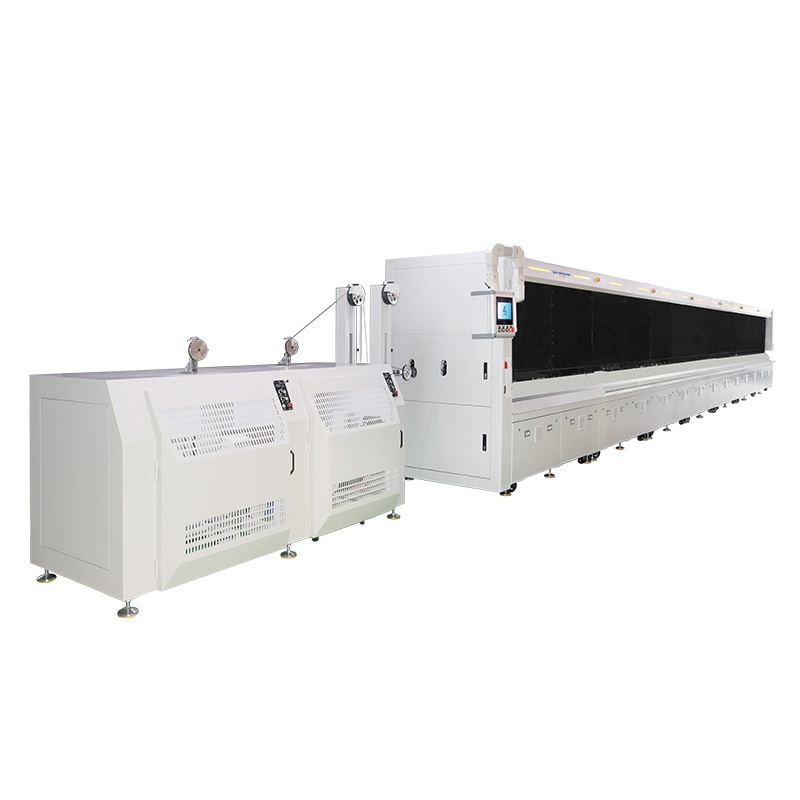

The Durable FAKRA-Ethernet-HSD Double-End Wiring Harness Equipment redefines the standards of automated cable manufacturing. Stepping onto the factory floor, operators will immediately notice the quiet hum of its precision servo motors and the smooth, vibration-free operation of its heavy-duty industrial gray chassis. This sophisticated machinery eliminates the bottleneck of manual assembly, transforming a labor-intensive process into a streamlined, highly profitable workflow. By automating intricate tasks such as ring stripping, aluminum foil removal, and conductor crimping, it drastically reduces human error and material waste. The tactile feel of the finished harnesses reveals perfectly crimped terminals and flawlessly stripped cores, ensuring your final products meet the most stringent automotive and telecommunication standards. Ultimately, this equipment empowers your facility to take on larger, more demanding contracts without expanding your workforce, delivering a rapid return on investment while elevating your reputation for uncompromising quality.
Production capacity | ≥ 800 PCS/H |
Yield | 99.5% (except for defective incoming materials) |
Appearance color | Industrial gray paint |
Applicable products | FAKRA wiring harness/Ethernet wiring harness/HSD wiring harness |
Dimensions | L15100mm/W1250mm/H2100mm |
Power supply voltage | AC 380V/50HZ |
Working air pressure | 5-6KG (water-free and oil-free) |
Working environment temperature | -10 degrees to 50 degrees |
Working environment humidity | 20 to 90% |
Safety device | Leakage protection, emergency stop |
Upgrading your production floor requires machinery that does more than just assemble; it needs to intelligently manage the entire workflow. This system is engineered with an array of sophisticated features designed to maximize uptime and minimize operator intervention. The integration of advanced diagnostics and seamless material handling ensures a frictionless manufacturing experience.
Independent Dual-Station Pay-Off Unit: Delivers exceptionally smooth wire feeding, eliminating tangles and maintaining consistent tension throughout the high-speed pulling process.
Intelligent Defect Recognition: Instantly identifies and isolates sub-standard components before they proceed, protecting your downstream assembly and brand reputation.
Modular Architecture: Allows for rapid component swapping and process upgrades, ensuring your capital equipment remains relevant as industry standards evolve.
Acoustic and Environmental Control: Operates with a rhythmic, low-decibel profile to prevent noise fatigue, and utilizes a clean air-blowing mechanism to keep the processing area free of conductive debris.
Meeting tight delivery schedules in the automotive and telecommunications sectors requires relentless speed without compromising precision. This equipment is built to handle the intense rhythm of continuous, large-scale manufacturing, ensuring your facility never falls behind on critical orders.
Achieves a remarkable output of ≥800 pieces per hour, drastically accelerating your order fulfillment cycle and boosting overall facility throughput.
Engineered specifically for dual-end processing, effectively doubling the output volume compared to traditional single-end alternatives.
Significantly cuts down on overhead costs by replacing multiple manual workstations with a single, high-speed automated line.
Maintains a steady, predictable production pace that allows plant managers to execute accurate forecasting and reliable inventory control.
Material waste and rework are the silent killers of manufacturing profitability. This system is designed with an uncompromising approach to quality assurance, acting as an automated gatekeeper for your production line to ensure absolute consistency.
Guarantees an exceptional yield rate of 99.5%, ensuring maximum utilization of your expensive raw materials and minimizing scrap.
Features integrated multi-stage inspection protocols that scrutinize every single cut, strip, and crimp in real-time.
Utilizes advanced CCD visual inspection technology to detect microscopic deviations that the human eye would inevitably miss.
Automatically segregates defective items into a designated bin, guaranteeing that absolutely no flawed harnesses make their way into your final shipments.
True manufacturing efficiency comes from eliminating the physical transfer of parts between different machines. This system consolidates an entire factory floor's worth of processes into one seamless, continuous operation, redefining what true automation looks like.
Executes a complete, end-to-end workflow from vibration plate feeding to final sorting without requiring any human intervention.
Flawlessly handles complex, multi-layered tasks including precision ring stripping, delicate braiding manipulation, and clean aluminum foil removal.
Performs highly accurate inner and outer conductor crimping, followed immediately by targeted air-blowing cleaning to remove microscopic debris.
Transforms a chaotic, multi-step assembly process into a synchronized, one-stop unmanned production powerhouse.
As technology evolves, your production capabilities must adapt rapidly to secure new contracts. This equipment offers remarkable flexibility, ensuring you can accept a diverse range of complex orders across various high-tech industries.
Perfectly calibrated to process FAKRA, Ethernet, and HSD high-speed cables with equal proficiency and precision.
Meets the exceptionally stringent manufacturing tolerances and quality standards required by the modern automotive electronics sector.
Provides robust, reliable solutions for telecommunication systems, power electronics, and emerging new energy vehicle applications.
Allows for rapid tooling changeovers, enabling your facility to pivot between different product lines with minimal downtime and maximum efficiency.
Industrial machinery must withstand the punishing demands of 24/7 operation without faltering. This system is constructed with a rugged, uncompromising foundation designed to deliver decades of reliable service under heavy workloads.
Built upon a heavy-duty, standardized industrial frame that completely eliminates micro-vibrations during high-speed operation.
Incorporates premium-grade electromechanical components sourced exclusively from top-tier global brands to prevent premature wear and tear.
Driven by a highly responsive servo motion control system combined with pneumatic drives, ensuring exact positioning with every single cycle.
Delivers a low-noise, energy-efficient performance that reduces facility utility costs while significantly extending the machine's operational lifespan.
Protecting your workforce is paramount, and a comfortable operator is a highly productive one. The design of this equipment prioritizes both physical safety and intuitive interaction, ensuring a secure and efficient working environment.
Enclosed in a streamlined chassis featuring an intelligent access control cover to physically separate operators from internal moving parts.
Equipped with highly responsive leakage protection and strategically placed emergency stop switches that provide a satisfying, immediate shutdown click when pressed.
Features an ergonomically optimized layout that reduces physical strain and bending during daily operation, maintenance, and material loading.
Simplifies the line-changeover process, allowing technicians to perform necessary adjustments swiftly and safely without awkward posturing.
Partnering with the right equipment supplier is a critical strategic decision that impacts your operational success for years to come. We do not just supply machinery; we provide comprehensive manufacturing solutions designed to elevate your market position. Our commitment to excellence is reflected in every piece of equipment that leaves our facility.
Proven Engineering Pedigree: Years of dedicated research and development in automation technology ensure you receive a highly refined, market-tested product.
Uncompromising Component Sourcing: We refuse to cut corners, utilizing only the finest domestic and international parts to guarantee unmatched reliability.
Tailored Technical Support: Our expert team provides extensive setup guidance, operational training, and rapid-response troubleshooting to keep your lines running smoothly.
Scalable Solutions: As your production demands grow, our modular designs allow for straightforward upgrades, protecting your initial capital investment.
Strict Quality Audits: Every machine undergoes rigorous, simulated high-volume testing before delivery to ensure it performs flawlessly right out of the box.

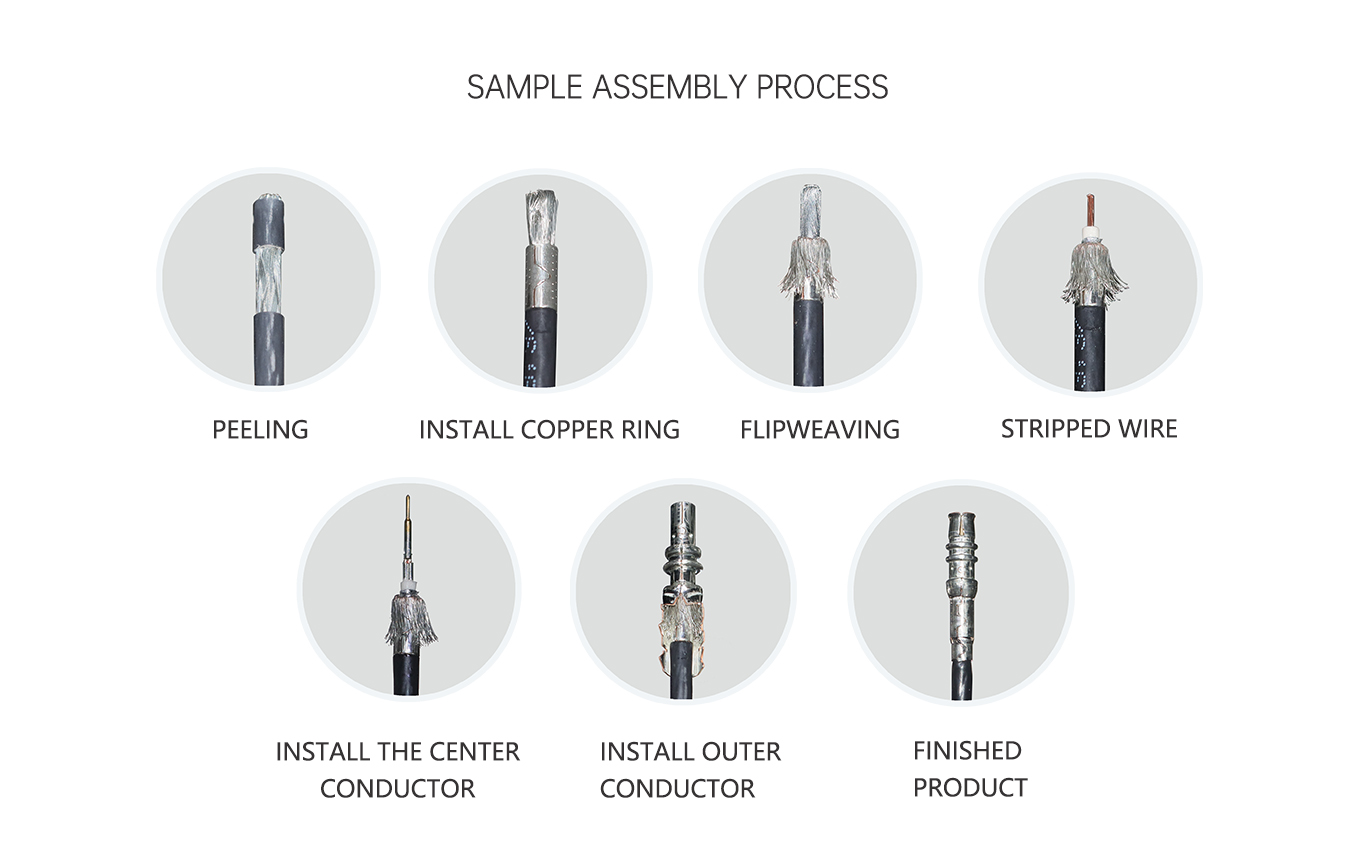

The machine utilizes a highly specialized, multi-stage stripping module designed explicitly for complex, multi-layered cables.
It employs precision-calibrated rotary blades to score the outer jacket without compressing or damaging the inner layers.
Automated brushing mechanisms gently fold back the braiding, while dedicated pneumatic tools safely and cleanly remove the aluminum foil.
This meticulous process ensures the internal dielectric and core conductors remain completely untouched, preserving critical signal integrity.
Yes, the system is built from the ground up with modern smart factory environments in mind.
It features a PLC-based intelligent control architecture that supports standard industrial communication protocols.
Production data, yield rates, and error logs can be tracked and exported in real-time.
This allows plant managers to monitor performance remotely and seamlessly integrate the machine's output into broader ERP or MES platforms.
Maintaining peak performance is straightforward thanks to the machine's modular and highly ergonomic design.
Daily tasks involve basic visual inspections and emptying the designated debris collection bins.
Weekly maintenance requires checking the pneumatic pressure levels (ensuring the 5-6KG water/oil-free standard is met) and gently cleaning the CCD camera lenses.
The servo drives and heavy-duty guideways are largely maintenance-free, requiring only periodic lubrication as outlined in the comprehensive service schedule.
The visual inspection module is highly adaptable and driven by advanced, high-speed image recognition algorithms.
Operators can easily create, store, and load specific visual profiles for various FAKRA connector geometries and color codes.
The high-resolution cameras verify the exact depth of the crimp, the alignment of the inner conductor, and the secure seating of the plastic housing.
If any parameter deviates even slightly from the saved profile, the system instantly flags the part for automatic sorting, preventing contamination of good batches.
Proper installation requires preparing your facility to accommodate its robust, industrial-grade specifications.
Space: A clear, leveled floor area accommodating the L15100mm x W1250mm dimensions, plus adequate walking space for operators and material handling carts.
Power: A stable AC 380V/50HZ power supply equipped with proper grounding and leakage protection.
Pneumatics: A reliable source of clean, water-free, and oil-free compressed air delivering a consistent 5-6KG of pressure.
Environment: A climate-controlled area capable of maintaining temperatures between -10℃ and 50℃, with humidity levels strictly kept between 20% and 90%.
