As a premier manufacturer and supplier of industrial automation, we offer this high-speed assembly solution.
Engineered specifically for bulk production facilities requiring rapid, uninterrupted output.
Factory-direct reliability designed to optimize procurement budgets and lower cost-per-unit.
Seamlessly integrates advanced robotics with precision inspection for large-scale manufacturing lines.
| Quantity: | |
|---|---|

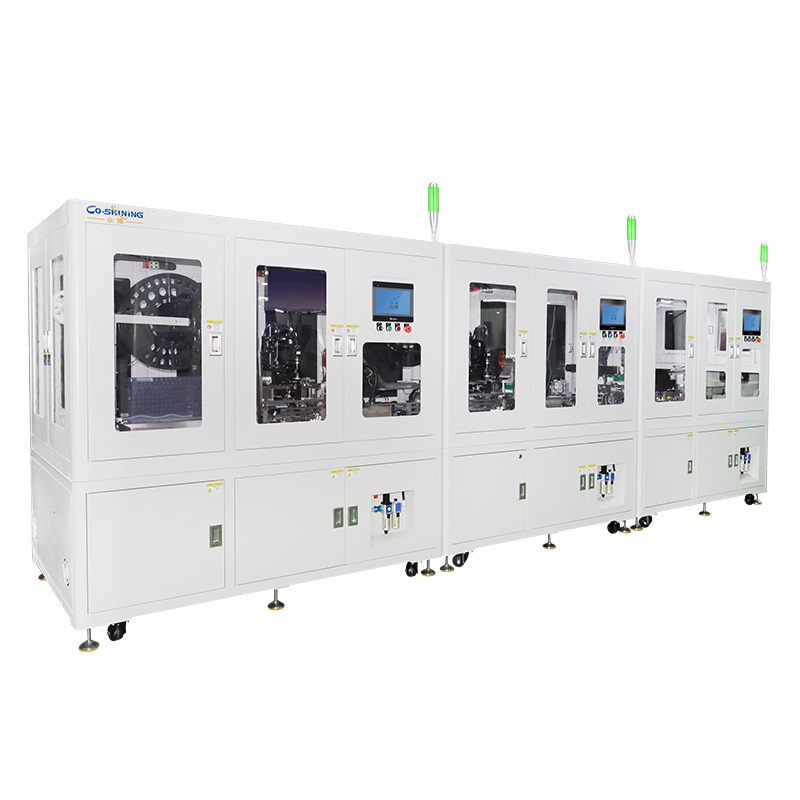

The Ultra-Fast Backplane Connector Assembly Machine is a masterclass in non-standard automated engineering, meticulously crafted to transform your high-speed connector production floor. When you stand beside this robust equipment, the first thing you notice is the hushed, rhythmic hum of its premium servo drives—a stark contrast to the clattering noise of conventional machinery. Its sleek, industrial-grade exterior features a smooth, powder-coated finish that not only looks highly professional but physically resists the harsh realities of daily factory environments. This machine eliminates the chaotic bottlenecks of manual assembly by introducing a seamless left-in, right-out workflow. It effortlessly tackles the persistent industry challenge of terminal misalignment through its integrated dual CCD visual inspection systems. By consolidating multiple intricate steps—from insulator blister tube loading and meticulous suction-blowing cleaning to metal fixing plate installation—into one continuous, fluid motion, it drastically reduces cycle times. Facility managers will appreciate how its compact, space-saving footprint maximizes shop floor real estate while the intelligent PLC control quietly harmonizes every moving part, delivering an uninterrupted stream of perfectly assembled components ready for immediate global distribution.
Production capacity | 250spm/min (actual output) |
Yield | 100% dimension inspection (terminals cannot be tilted up or down) |

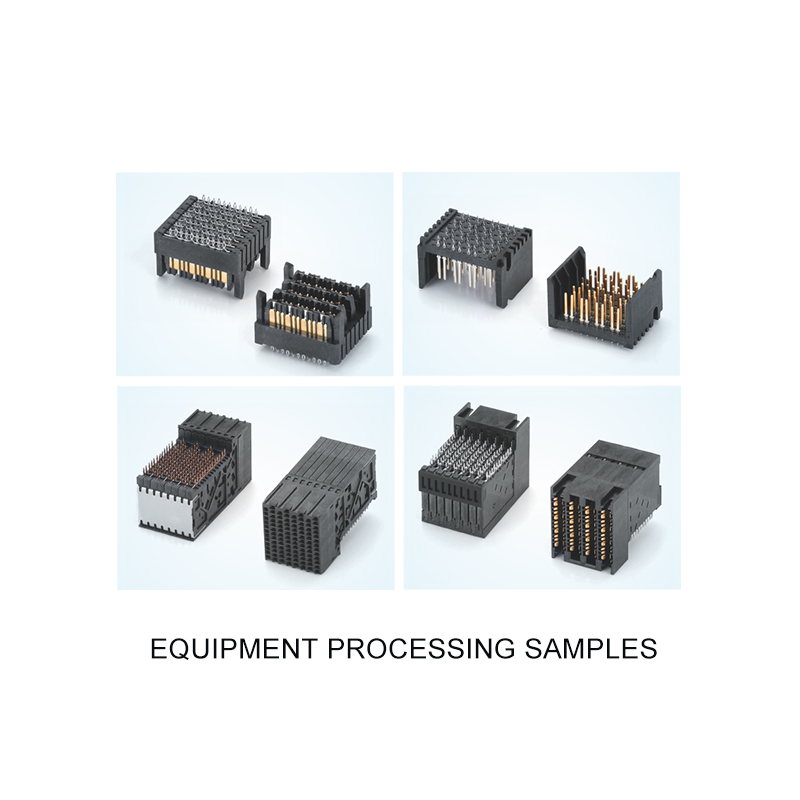

Applicable products | According to 3 relevant drawings |
Machine size | L2200mm/W600mm/H1800mm (actual size refers to the final 3D) |
Working voltage | AC220/50HZ |
Working air pressure | 5-6KG (water-free and oil-free) |
Working environment temperature | -10 degrees to 50 degrees |
Working environment humidity | 20 to 90% |
Safety device | leakage protection, emergency stop |
This equipment is engineered to transcend basic automation, offering a suite of refined features that directly address the most complex challenges in modern electronic manufacturing.
Driven by top-tier servo motors, the machine operates with a whisper-quiet fluidity. This eliminates the jarring mechanical vibrations that typically cause long-term component wear and operator fatigue, ensuring a smoother factory environment.
The tactile precision of the insulator transfer and suction-blowing cleaning mechanisms ensures that every microscopic dust particle is eradicated before assembly. This meticulous handling preserves the absolute integrity of highly sensitive electronic contacts.
The structural layout is an engineering marvel. It boasts a compact footprint that surprisingly feels incredibly spacious on the inside, allowing your technical staff swift maintenance access without disrupting adjacent production lines.
By consolidating multiple discrete stations into a singular, cohesive unit, facility managers can reallocate valuable human resources from repetitive manual labor to higher-level quality assurance and facility management tasks.
In the highly competitive landscape of electronic component manufacturing, output speed directly correlates with market dominance. This assembly machine is engineered to push the boundaries of operational velocity without sacrificing an ounce of precision.
Achieving a verified actual production capacity of 250 spm/min, this system allows large-scale manufacturers to meet aggressive delivery deadlines with absolute ease and confidence.
The integration of industry-leading servo drives ensures that the rapid acceleration and deceleration phases are handled with extreme energy efficiency. This significantly lowers your daily power consumption while maintaining peak performance.
The continuous, left-to-right processing flow minimizes idle time between cycles. This streamlined choreography ensures that your capital investment is constantly generating value every second it is powered on.
By maintaining a relentless production pace with minimal power draw and zero manual intervention, the machine aggressively drives down the manufacturing cost of each individual backplane connector, dramatically widening your profit margins.
Substandard connectors can lead to catastrophic failures in high-end communication servers and networking hardware. We understand that for industrial procurers, quality is non-negotiable. This equipment acts as an impenetrable fortress against defective products.
Featuring 100% dimension inspection, the system guarantees that absolutely no terminals are tilted up or down. This flawless alignment ensures perfect mating and connectivity for downstream applications.
Equipped with sophisticated double CCD cameras during both the primary and secondary backplane assembly stages, the machine acts with a microscopic level of scrutiny, instantly catching anomalies that are entirely invisible to the human eye.
By halting the process the exact millisecond an irregularity is detected, the machine prevents the compounding of errors. This strict protocol ensures that only flawless components reach the end of the belt line.
Delivering consistently perfect batches dramatically reduces the risk of costly recalls. This unyielding quality control protects your brand's reputation among stringent server and telecom infrastructure clients.
Transitioning into the era of Industry 4.0 requires machinery that not only acts but communicates. This system bridges the critical gap between mechanical assembly and digital factory management.
Production data is instantly and securely uploaded to your facility's MES (Manufacturing Execution System). This provides plant managers with real-time analytics and comprehensive historical traceability for every single batch produced.

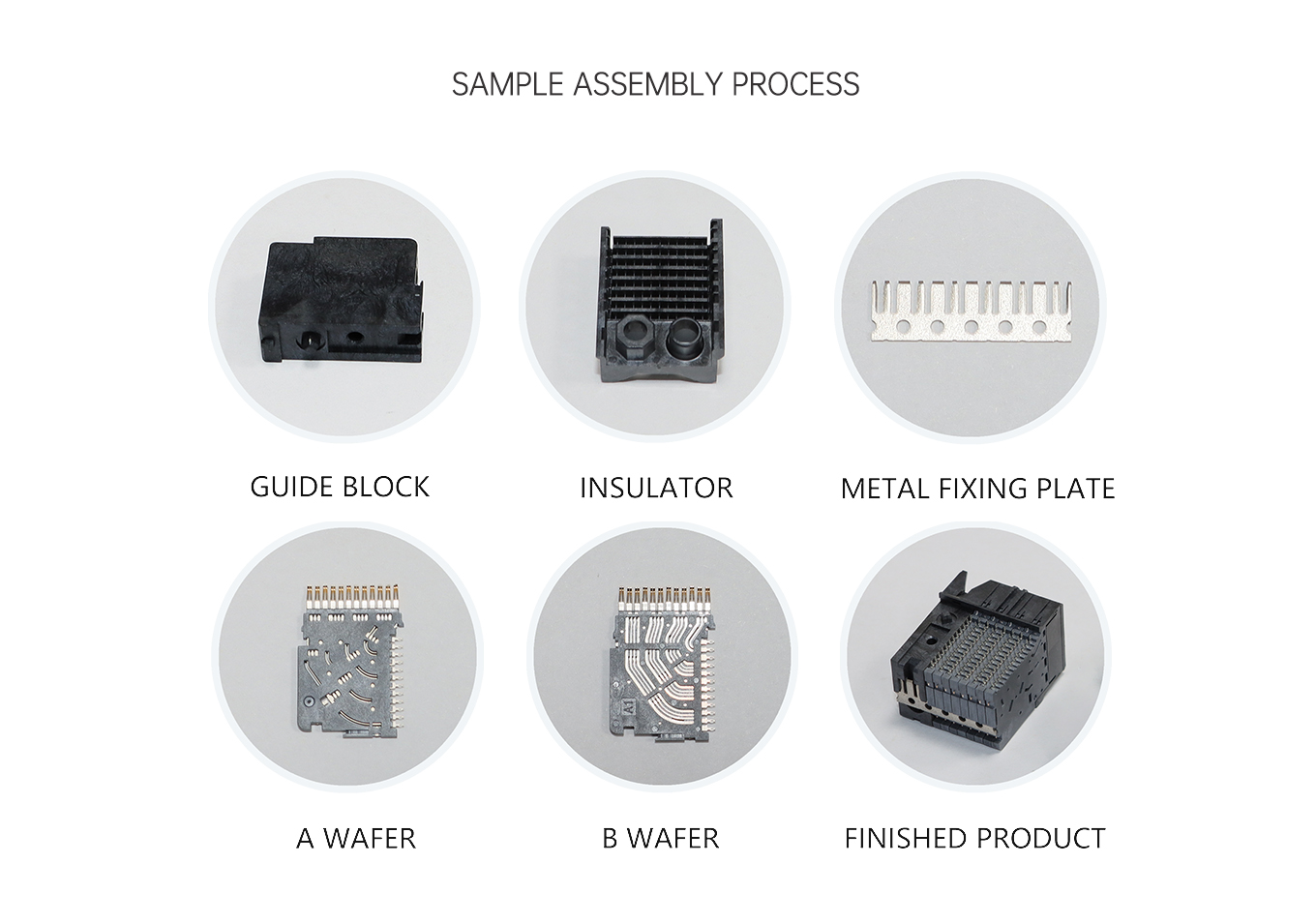

The advanced PLC acts as the central brain of the operation, executing complex, multi-step sequences—from blister tube loading to metal plate fixing—with zero latency and absolute synchronization.
Once the raw materials are loaded into the system, the entire workflow is entirely autonomous. The automated suction and blowing cleaning stations ensure pristine conditions without requiring any manual intervention.
The continuous flow of digital data allows your maintenance teams to monitor the health of the machine remotely. This capability enables you to schedule upkeep only when necessary, preventing unexpected operational halts.
Rigid, single-purpose machines are a severe liability in a market that demands constant adaptation. We designed this assembly unit with a modular architecture that embraces change, safeguarding your capital investment against rapid product obsolescence.
The system is pre-engineered to seamlessly transition between 3 different relevant product drawings. This agility allows you to pivot your production lines instantly based on fluctuating market demands.
By accommodating various backplane connector specifications within a single robust frame, you completely eliminate the need to purchase, install, and maintain multiple specialized machines.
The internal architecture utilizes standardized modules that can be swiftly adjusted or swapped. This intelligent modularity drastically reduces the downtime typically required for product changeovers.
Consolidating multiple product capabilities into one compact unit (measuring just L2200mm x W600mm x H1800mm) frees up valuable factory floor space, allowing you to expand other revenue-generating activities.
The well-being of your operational staff and the integrity of your facility are paramount. This machine is fortified with a comprehensive suite of safety protocols that exceed standard industrial compliance.
The robust machine cover is integrated with a highly secure access control system. This ensures that only authorized technicians can interact with the internal mechanisms, preventing accidental interference during high-speed operation.
Strategically placed emergency stop buttons and highly responsive leakage protection circuits immediately cut power at the very first sign of electrical anomalies or human proximity breaches.
The fully enclosed design not only keeps the internal environment free from external factory contaminants but also physically shields operators from moving parts and pneumatic blasts during the suction and cleaning phases.
Beyond pure safety, the clean lines and professional finish of the exterior elevate the visual standard of your workshop. It reflects a deep commitment to maintaining a modern, safe, and highly organized manufacturing environment.
True industrial value is measured not just in days or months, but in years of relentless, high-volume operation. We have sourced only the most resilient components to ensure this machine stands the test of time in demanding environments.
Every critical moving part, particularly the core servo drives, is sourced from globally recognized, top-tier brands. This unwavering commitment to quality drastically reduces the frequency of mechanical breakdowns.
Engineered to thrive where lesser machines fail, this unit operates flawlessly in temperature extremes ranging from a freezing -10℃ to a sweltering 50℃, and comfortably handles humidity levels from 20% up to 90%.
Designed to run on standard 5-6KG air pressure (strictly water-free and oil-free), the pneumatic systems are built to resist internal corrosion, ensuring crisp, powerful mechanical movements year after year.
The combination of durable standard parts, reduced maintenance requirements, and consistent, high-yield output results in a remarkably low lifecycle cost, maximizing your long-term operational profitability.
Partnering with a dedicated manufacturer means securing a distinct competitive edge in your supply chain. We do not just build machines; we engineer comprehensive solutions tailored to the rigorous demands of modern manufacturing facilities.
Decades of focused experience in non-standard automation allow us to anticipate production bottlenecks and engineer proactive, innovative solutions that keep your assembly lines moving at peak capacity.
By eliminating unnecessary intermediaries, we provide premium, industrial-grade equipment at highly competitive price points, ensuring your procurement budget works significantly harder for your bottom line.
Every single machine undergoes exhaustive stress testing under simulated factory conditions before it ever leaves our facility, guaranteeing plug-and-play reliability the moment it arrives on your floor.
From the initial 3D design consultation to post-installation software updates and maintenance training, our dedicated support teams stand firmly by your side to ensure uninterrupted operational excellence.
Below are some of the most common technical inquiries we receive from facility managers and procurement specialists regarding this high-speed assembly equipment.
The equipment features an intelligent switching system specifically designed to accommodate up to 3 relevant product drawings. By utilizing standardized, modular mechanisms and advanced PLC programming, changeovers are executed swiftly with minimal mechanical adjustments, significantly reducing your production downtime.
The machine requires a stable AC220V/50HZ power supply and a clean pneumatic source delivering 5-6KG of water-free and oil-free air. It is highly adaptable to varied factory conditions, operating efficiently in ambient temperatures ranging from -10℃ to 50℃ and humidity levels between 20% and 90%.
Absolutely. The dual CCD detection systems integrated into both the primary and secondary backplane assembly stages are meticulously calibrated for 100% dimension inspection. They are specifically programmed to identify and reject any terminals that are tilted up or down, ensuring zero defective units pass through the line.
The machine is fully Industry 4.0 ready. Its sophisticated PLC control system is configured to seamlessly upload real-time production metrics, yield rates, and operational status directly to your facility's MES (Manufacturing Execution System) for comprehensive digital tracking and centralized management.
Operator safety is engineered into the very core of the machine. It features a robust access control system on the main cover, instantaneous electrical leakage protection, and strategically located emergency stop buttons. The fully enclosed design further protects your staff from moving components during high-speed operation.
