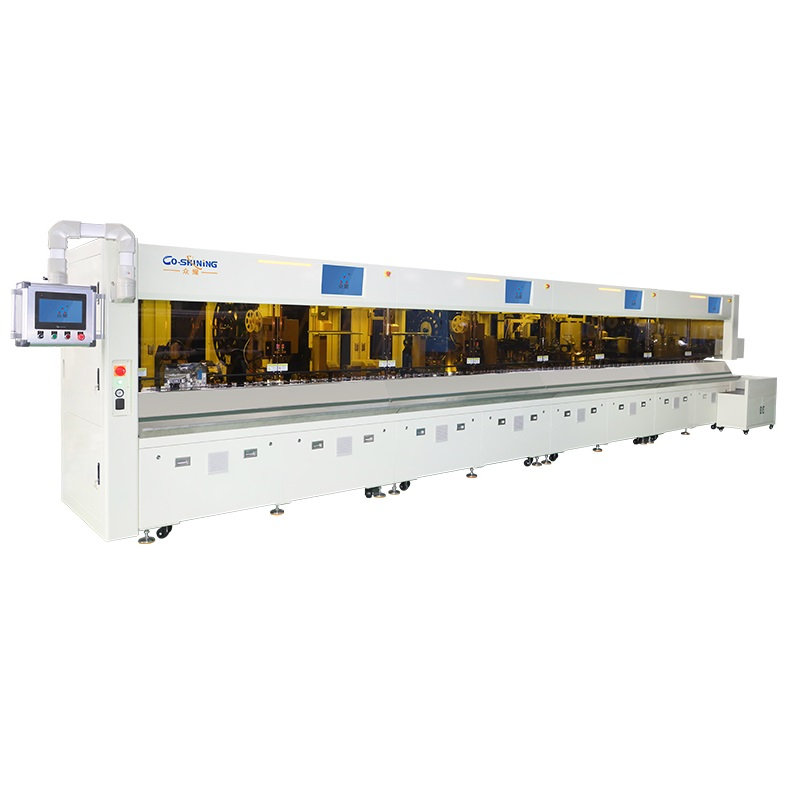

The equipment boasts a customizable industrial design that aligns with diverse factory aesthetics and spatial requirements. Its machine cover is equipped with intelligent access control, which not only prevents unauthorized operation but also ensures operator safety during production. The ergonomic design simplifies operation, reducing training time for staff, while the combination of industrial materials and sleek craftsmanship makes the equipment both durable and visually appealing.

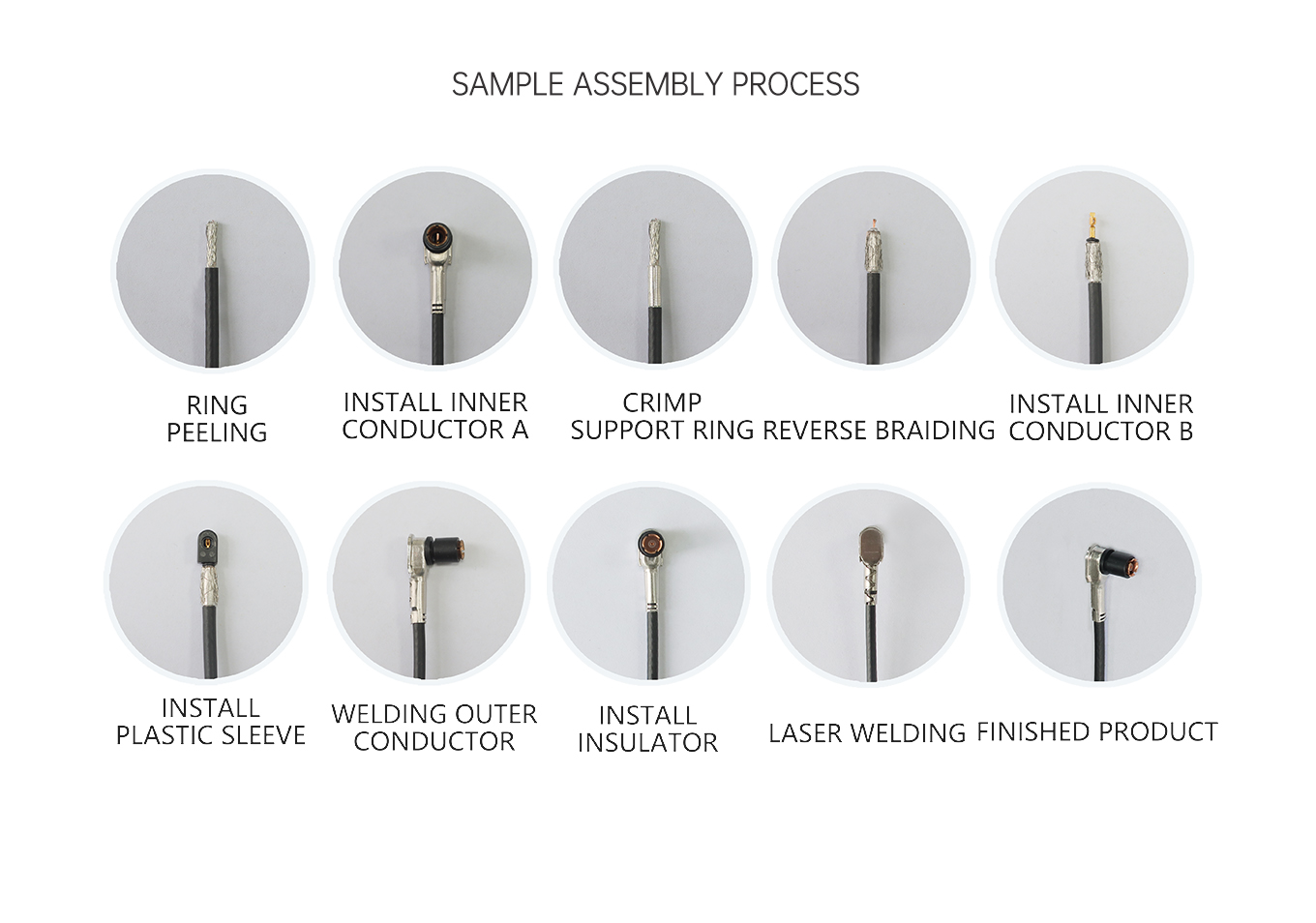

Adopting a modular and standardized mechanism design, the equipment undergoes rigorous verification to guarantee long-term reliable operation. Each functional module—such as peeling, crimping, and welding—can be independently maintained or upgraded, minimizing downtime and extending the machine’s service life. This design also allows for flexible adaptation to different FAKRA wire harness specifications, eliminating the need for full equipment replacement when product requirements change.
All standard parts are sourced from renowned domestic and foreign first-line brands, with a preference for high-performance servo drives. This configuration delivers three core benefits: high-speed operation that shortens cycle time, silent performance that improves workshop working conditions, and energy-saving technology that reduces operational costs. The servo drive system ensures precise control of each assembly step, enhancing the consistency of finished products.
Safety is a top priority in the design. The equipment is equipped with leakage protection and emergency stop functions to handle unexpected situations promptly. These devices comply with international industrial safety standards, providing a secure working environment for operators and protecting the equipment from potential damage caused by electrical faults or improper operation.
Efficiency | ≤8S/piece (excluding manual wire laying time, within 5 meters of winding, utilization rate: 90%) |
Yield | 99% |
Applicable products | according to relevant drawings |
Dimensions | L15100mm/W1250mm/H2100mm (actual dimensions refer to the final 3D) |
Working voltage | AC380V/50HZ |
Working air pressure | 5-6KG (water-free and oil-free) |
Working environment temperature | -10 degrees to 50 degrees |
Working environment humidity | 20 to 90% |
Safety device | leakage protection, emergency stop |
