The electronics industry moves at breakneck speed. To stay competitive, manufacturers must pivot from manual labor to advanced Connector Assembling Automation Equipment. High-speed production isn't just about moving parts faster; it’s about maintaining Precision while scaling output to millions of units. In this guide, we dive deep into the top 10 technical solutions that define modern automated assembly.
Modern manufacturing demands more than just basic automation. When we talk about Connector Assembling Automation Equipment, we refer to systems capable of handling sub-millimeter components without a hiccup. The primary challenge remains balancing throughput with quality. If a machine runs at Ultra-Fast speeds but has a 5% reject rate, it’s a liability, not an asset.
In a Fully automatic setup, components move through vibration feeders and pick-and-place heads in milliseconds. Even a microscopic misalignment leads to bent pins or cracked housings. Therefore, high-speed solutions must integrate real-time feedback loops.
Most production lines fail at the inspection stage. While assembly might be fast, manual or slow automated inspection creates a pile-up. The best Connector Assembling Automation Equipment integrates high-speed CCD (Charge-Coupled Device) cameras that check every angle of the connector as it moves, ensuring High efficiency without slowing the flow.
| Feature | Impact on Production |
| Ultra-Fast Cycle Time | Increases daily output by up to 400% |
| Precision Visual Inspection | Reduces human error and material waste |
| Compact Modular Design | Saves floor space and allows quick line changes |
To achieve High efficiency, manufacturers are adopting specific technological configurations. Here are the ten most effective solutions currently dominating the market for Connector Assembling Automation Equipment.
These are the workhorses of the industry. They use a circular dial to move connectors through various stations—loading, pin insertion, crimping, and testing. It’s a High efficiency choice for small to medium-sized connectors.
For complex connectors requiring many steps, linear systems offer more "real estate" for stations. They allow for Fully automatic integration of laser marking and ultrasonic welding within the same line.
By mimicking human dexterity but with Ultra-Fast consistency, dual-arm robots can handle simultaneous tasks, such as holding a housing while inserting fragile pins.
Unlike "stop-and-go" systems, continuous motion machines never stop the product flow. This results in the highest possible parts-per-minute (PPM) counts, essential for consumer electronics.
These systems allow companies to swap out modules for different connector types. This High efficiency flexibility is crucial for contract manufacturers.
With the rise of EVs, High-Voltage connector assembly requires specialized insulation testing and robust terminal crimping modules within the Connector Assembling Automation Equipment.
For ultra-fine pitch connectors, mechanical guides aren't enough. Vision systems "see" the part and adjust the robot's coordinates in real-time to ensure Precision.
Instead of loose-piece feeding, this solution uses continuous metal strips. It’s Ultra-Fast because it eliminates the orientation phase of the assembly.
For sealed connectors, integrated ultrasonic welding provides a High-speed alternative to adhesives or mechanical fasteners.
The latest Connector Assembling Automation Equipment uses machine learning to predict tool wear, preventing defects before they even happen.

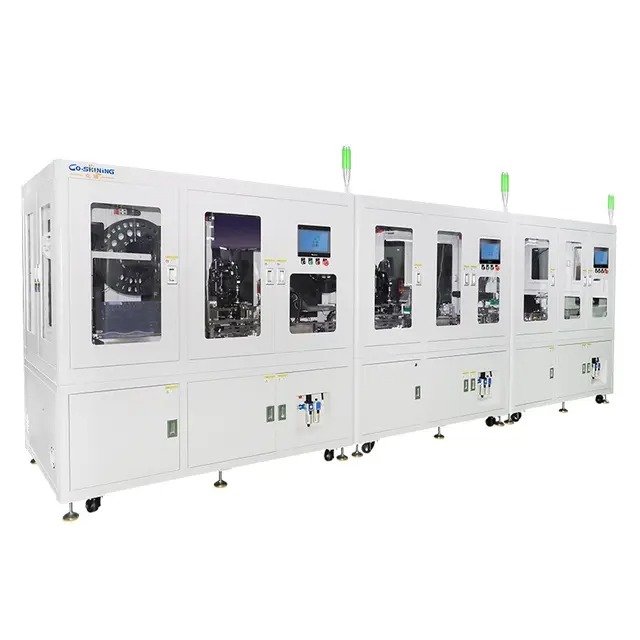

When we look at the most successful production floors, Fully automatic multi-station platforms stand out. These aren't just machines; they are integrated ecosystems. A single platform might handle everything from raw plastic shells to retail-ready packaged connectors.
A Fully automatic system eliminates "work-in-progress" (WIP) lag. In a traditional setup, parts might sit in bins between the assembly and testing phases. Modern Connector Assembling Automation Equipment ensures that the moment a pin is inserted, it moves to the electrical continuity test. This creates a "One-Piece Flow" that maximizes High efficiency.
The goal of a Fully automatic solution is to have one operator managing multiple lines. By using Precision sensors, these machines detect when a hopper is low or a part is jammed. They send an alert to the operator’s tablet, allowing for proactive maintenance. This shift significantly lowers the cost per unit while maintaining High-speed output.
Example Case: A manufacturer switched from semi-auto to a Fully automatic 12-station rotary system. They saw an immediate 300% increase in PPM and a 90% reduction in labor costs for that specific SKU (Data based on industry averages, needs verification).
As devices get smaller, the Connector Assembling Automation Equipment must get smarter. We are now dealing with pitches (the distance between pins) that are less than 0.5mm. At these scales, even a vibration from a passing forklift can ruin Precision.
High-end Connector Assembling Automation Equipment uses granite bases or heavy-duty cast iron frames. These materials absorb micro-vibrations, ensuring the Precision of the pick-and-place nozzles remains consistent during Ultra-Fast movements.
Feeding tiny pins or housings is a nightmare for standard bowls. High efficiency systems use flexible feeders or centrifugal feeders that gently orient parts without scratching their delicate plating. This ensures the Precision of the final electrical connection is never compromised by surface damage.
Sometimes, a part looks right but doesn't "feel" right. Advanced Connector Assembling Automation Equipment uses force-sensing technology. If it takes too much pressure to seat a pin, the machine stops instantly. This prevents the "crunch" that ruins expensive molds and ensures High-speed doesn't mean high-waste.
The automotive industry has changed the rules for Connector Assembling Automation Equipment. We are no longer just dealing with 5V signals; we are dealing with High-Voltage systems that can be lethal.
High-Voltage connectors are bulky and require significant force to assemble. The equipment must be robust. We use heavy-duty pneumatic or servo-electric presses that provide the necessary "muscle" while maintaining Precision. Safety light curtains and interlocked enclosures are standard on these High-speed lines to protect operators.
A High-Voltage connector failure is catastrophic. Therefore, the Connector Assembling Automation Equipment must include integrated dielectric strength testing (Hi-Pot testing). We don't just assemble the part; we verify that its insulation can handle 1000V+ before it leaves the machine. This High efficiency integration of testing is what separates professional-grade equipment from basic assembly tools.
Standard Connector Assembling Automation Equipment isn't built for 0-gauge wire or massive copper lugs. Special High-Voltage assembly solutions include automated wire stripping, lug crimping, and heat-shrink application modules. It’s a specialized niche where Precision meets power.
You cannot have High-speed production without Ultra-Fast inspection. If your machine makes 100 parts a minute but your camera can only check 50, you have a problem.
Modern Connector Assembling Automation Equipment utilizes multiple cameras. They check for:
Pin Alignment: Ensuring no pins are bent or missing.
Housing Integrity: Checking for cracks or molding flashes.
Color Coding: Verifying the correct plastic shell is used.
Dimensional Accuracy: Using Precision lasers to measure tolerances within microns.
It’s not enough to just reject a bad part. The Connector Assembling Automation Equipment should tell you why it happened. If the last 50 parts had a slightly off-center pin, the AI tells the operator to check the feeder alignment. This High efficiency approach to maintenance keeps the line running at Ultra-Fast speeds for longer periods.
Floor space is expensive. A Compact machine footprint is a major advantage for modern factories. By using vertical space and multi-tier conveyors, Connector Assembling Automation Equipment can fit more power into less square footage.
Instead of one massive, monolithic machine, we prefer modular cells. You can start with a basic Fully automatic assembly cell and add a laser-marking cell later. This allows for High efficiency scaling as your business grows.
In a High-speed environment, downtime is the enemy. Compact modular systems feature "Quick-Change" plates. An operator can switch the machine from assembling 4-pin connectors to 8-pin connectors in under 20 minutes. This versatility makes the Connector Assembling Automation Equipment a long-term investment rather than a single-use tool.
The demand for Connector Assembling Automation Equipment will only grow as 5G, IoT, and EVs expand. To stay ahead, you must choose solutions that prioritize Precision, High efficiency, and Ultra-Fast cycle times. Whether you need a Compact unit for micro-connectors or a massive High-Voltage line for automotive parts, automation is the only path to sustainable growth.
At Co-Shining, we don't just build machines; we engineer competitive advantages. As an industry leader with over two decades of experience, we have seen the evolution of Connector Assembling Automation Equipment firsthand. Our factory is a testament to what we preach. We utilize the same Precision and High efficiency standards in our own production that we offer to our clients.
We take pride in our "Innovation-First" philosophy. Our R&D team is constantly pushing the limits of Ultra-Fast assembly, ensuring our equipment remains at the cutting edge of technology. When you partner with us, you are gaining access to a world-class manufacturing facility and a team of experts dedicated to your success. We have successfully delivered thousands of Fully automatic solutions to global giants, proving that our equipment can handle the most rigorous High-speed demands in the world. We invite you to explore our capabilities and see how we can transform your production line.
Speeds vary by complexity, but high-end Ultra-Fast systems can produce between 60 to 200 parts per minute. Simple Fully automatic systems usually hover around 40-80 PPM.
Yes. Modern Connector Assembling Automation Equipment is often designed with modularity in mind. While some components are specific to a part, the "base" machine can be re-tooled for different designs, ensuring High efficiency.
Integrated CCD vision systems and force-sensing modules are key. They provide Precision monitoring at every step, automatically rejecting any part that doesn't meet strict tolerances.
If your product has a long lifecycle, yes. However, for very low volumes, semi-automatic tools might be more cost-effective. For anything intended for High-speed mass market, Connector Assembling Automation Equipment is essential.
Thanks to Compact design trends, a full-featured line can often fit within a 5-meter by 2-meter footprint, though this depends heavily on the number of stations required.
