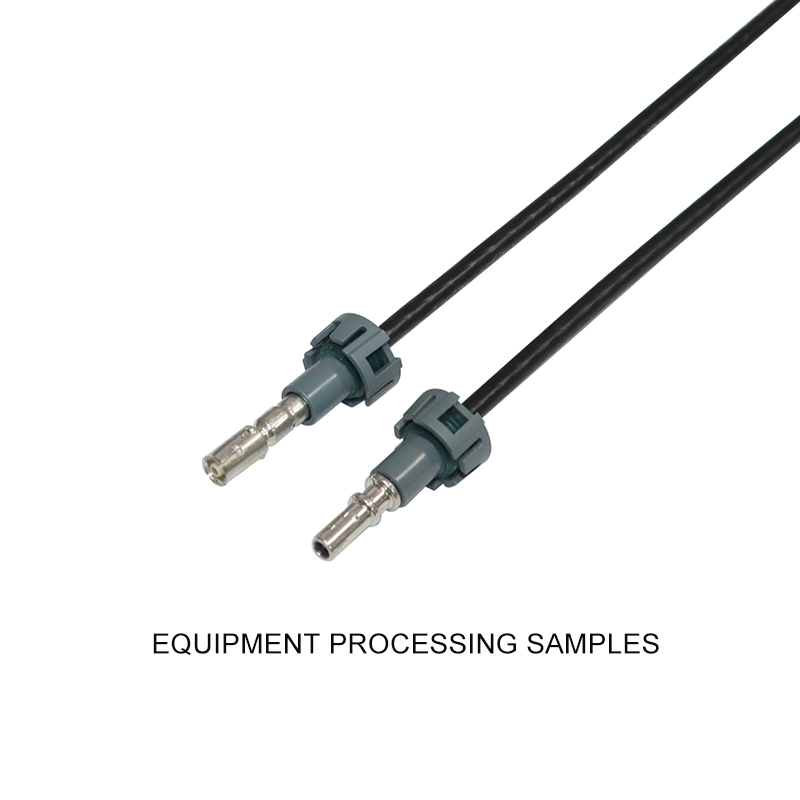

For manufacturers specializing in automotive electronics, the Fakra Sealing Harness Single-End Production Tool is a game-changing solution for producing high-quality FAKRA wiring harnesses. This automated equipment is designed to manufacture MINI FAKRA male harnesses, MINI FAKRA female harnesses, and sealed-component MINI FAKRA harnesses, combining efficiency, precision, and safety. Let’s dive into its key features:

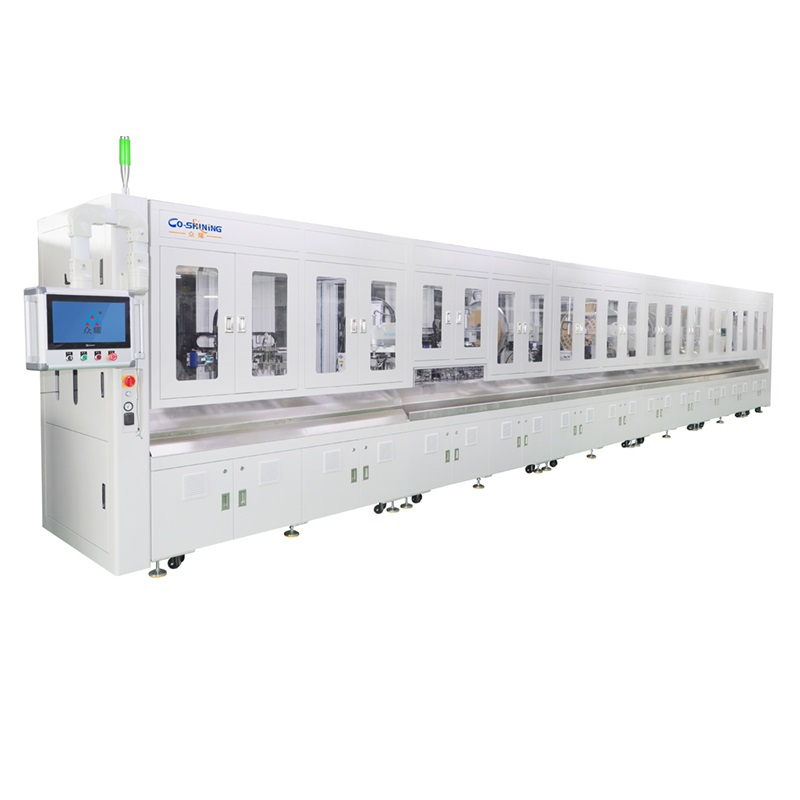

The Fakra Sealing Harness Single-End Production Tool features a left-in-right-out structure that optimizes workflow efficiency, allowing for seamless integration into production lines. The front and rear doors of the machine are transparent glass swing doors, enabling operators to monitor the production process in real time without interrupting operations. At the top of the equipment, a three-color LED warning light with a buzzer provides clear visual and audio alerts for abnormal conditions, ensuring quick detection and resolution of issues.
With a customizable industrial design, the equipment can be tailored to match your factory’s aesthetic and operational needs. The industrial gray paint finish is resistant to scratches, oil, and dust, ensuring the equipment maintains its appearance even in harsh production environments. Measuring L13800mm/W1250mm/H2150mm (subject to actual dimensions), it balances extensive functionality with a layout that maximizes space utilization. The machine cover is equipped with access control, enhancing safety by restricting access to internal components during operation.

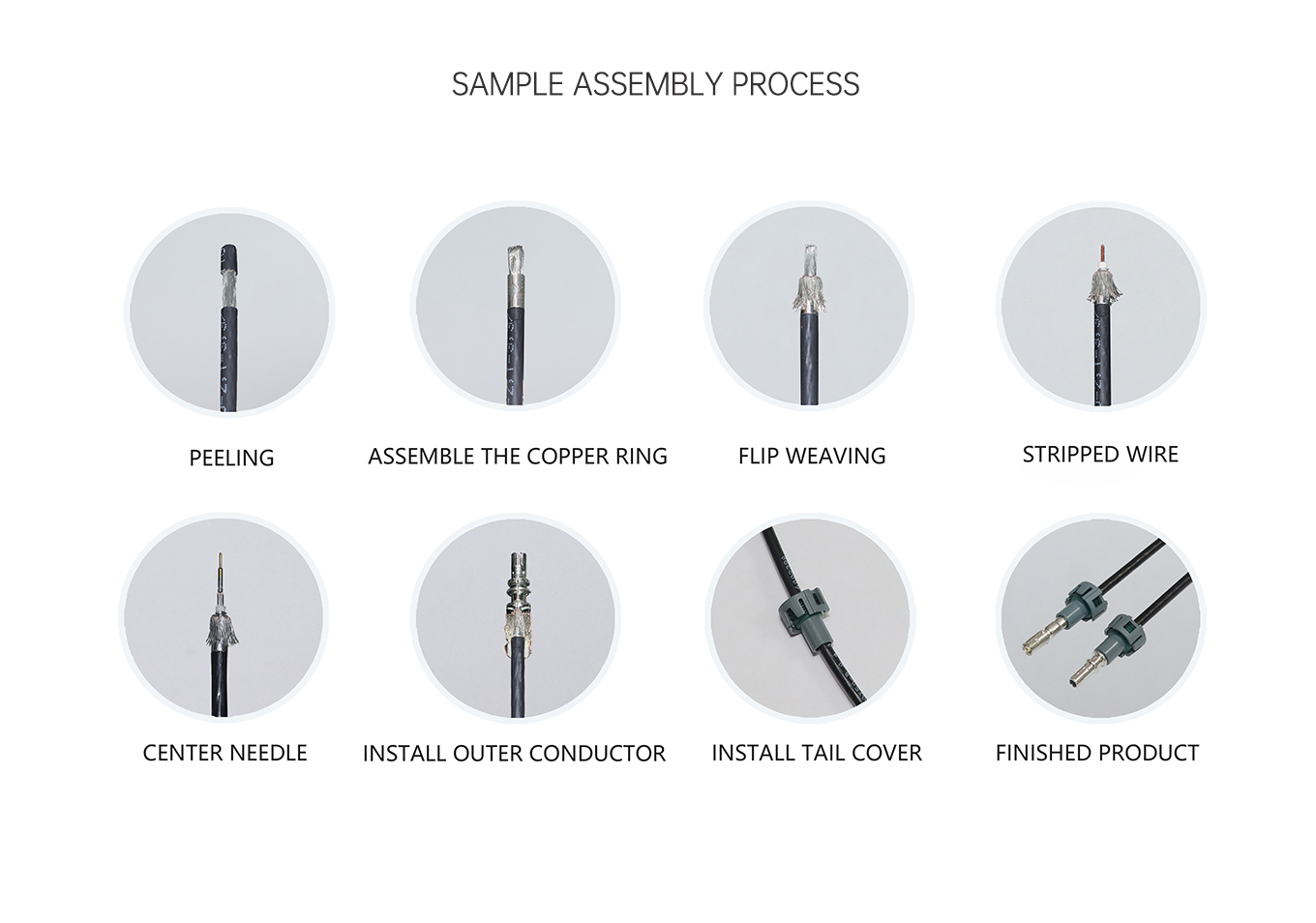

The mechanism design follows a modular, standardized approach, ensuring reliable and stable operation. The Fakra Sealing Harness Single-End Production Tool integrates a complete range of functions, including peeling, assembling the copper ring, flipping weaving, stripping wire, installing the center needle, outer conductor, and tail cover, as well as laser coding and stacking packaging. Each module operates with precision, ensuring consistent assembly of FAKRA wiring harnesses that meet strict industry standards.
With a production capacity of single-end ≤5S/piece and double-end ≤10S/piece, the equipment delivers exceptional efficiency for high-volume production. It boasts a utilization rate of ≥95% and a yield rate of ≥99% (excluding defective incoming materials), minimizing waste and maximizing output. The modular design simplifies maintenance, allowing for quick module replacement or inspection without disrupting the entire production line. The laser coding function adds traceability, enabling manufacturers to track each harness’s production details for quality control and compliance.
All standard parts of the Fakra Sealing Harness Single-End Production Tool are sourced from domestic and foreign first-line brands. This ensures that every component—from the peeling mechanism to the laser coding module—delivers reliable performance and durability. The use of premium parts reduces the risk of equipment failure, extending the service life and lowering maintenance costs over time.
Servo drive technology is a core component of the equipment, offering high-speed operation, silent performance, and energy efficiency. The servo drive provides precise control over each production step, ensuring accurate stripping, assembly, and installation of harness components. Its silent operation reduces factory noise, while energy-saving features cut down on power consumption, making the equipment both cost-effective and environmentally friendly. Whether producing single-end or double-end harnesses, the servo drive maintains consistent precision, ensuring every product meets the highest quality standards.
Production capacity | Single-end ≤5S/piece, double-end ≤10S/piece |
Utilization rate | ≥ 95% |
Yield | ≥ 99% (except for defective incoming materials) |
Appearance color | Industrial gray paint |
Applicable products | FAKRA wiring harness |
Dimensions | L13800mm/W1250mm/H2150mm (subject to actual dimensions) |
Power supply voltage | AC 220V/50HZ |
Working air pressure | 5-6KG (water-free and oil-free) |
Working environment temperature | -10 degrees to 50 degrees |
Working environment humidity | 20 to 90% |
Safety device | Leakage protection, emergency stop |
