The FAKRA Female Outer Conductor Auto Assembler is a specialized automation equipment designed for assembling outer conductors of FAKRA female end connectors in automotive harnesses. Its innovative design focuses on space optimization, operational flexibility, and production efficiency, making it a valuable tool for manufacturers looking to streamline FAKRA connector production and enhance product reliability.

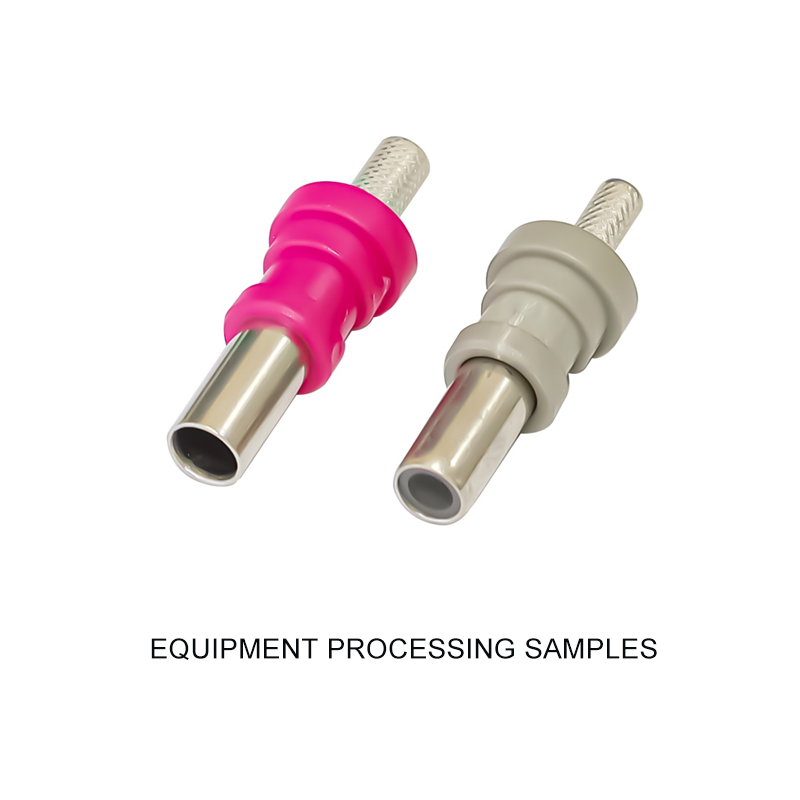

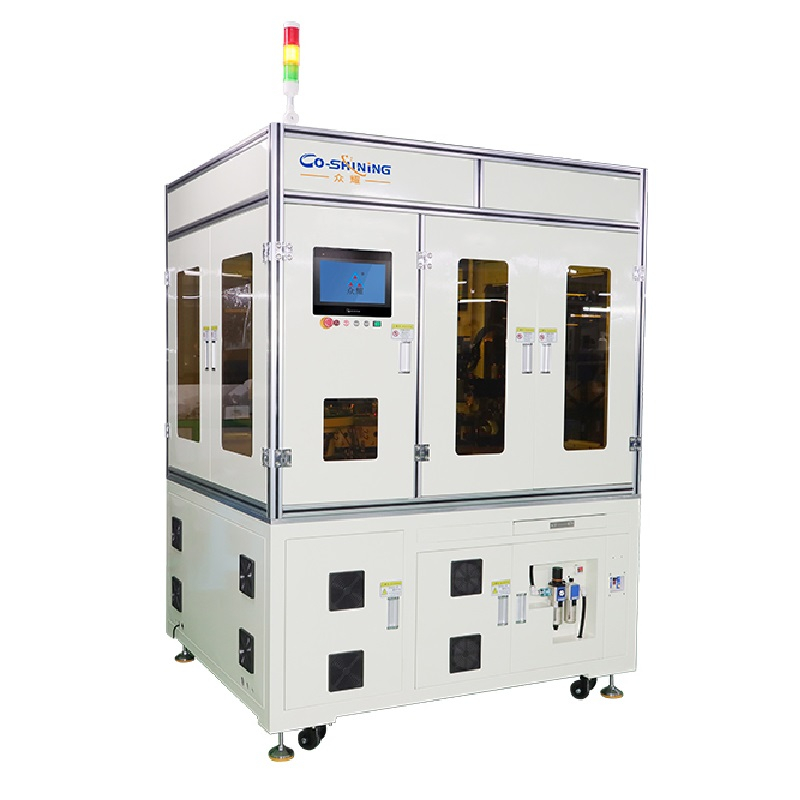

The FAKRA Female Outer Conductor Auto Assembler features a customizable industrial design that combines functionality with aesthetic appeal. Its machine cover is equipped with an access control system, ensuring safe operation while facilitating easy maintenance. The equipment’s unique internal surround workstation design greatly compresses the floor space, with dimensions of L1600mm/W1600mm/H1900mm (actual dimensions refer to the final 3D design), making it ideal for workshops with limited space. The compact structure does not compromise operational range, providing ample room for material handling and finished product collection.
Safety is integrated into the machine’s design, with leakage protection and an emergency stop button to safeguard operators and prevent production disruptions. The workbench is equipped with a finished product receiving box, and both ends of the box feature overflow alarm devices. These alarms notify operators to retrieve finished products in a timely manner, avoiding overflow and ensuring continuous production. The machine operates reliably in a working environment temperature range of -10 degrees to 50 degrees and a humidity range of 20 to 90%, adapting to diverse industrial conditions.
The FAKRA Female Outer Conductor Auto Assembler is equipped with two small vibration plate loaders inside and two independent vibration plate loader docking workbenches outside. Operators can select feeding methods according to production formulas, enhancing operational flexibility. The internal surround workstation design optimizes the workflow, reducing the distance between processing steps and improving production efficiency. This layout also lowers equipment manufacturing costs by minimizing structural complexity while maintaining functionality.

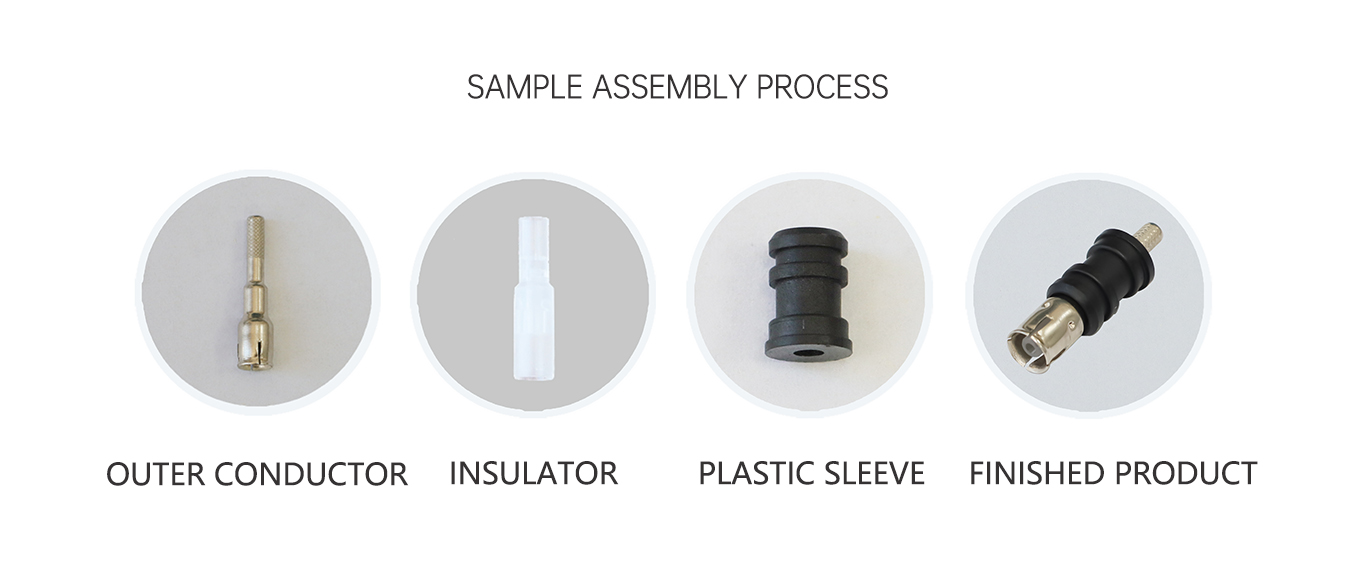

The machine integrates a full set of functional mechanisms to complete the FAKRA female outer conductor assembly process, ensuring seamless operation from material feeding to finished product collection. Each mechanism is designed with precision to guarantee consistent assembly quality, including accurate positioning of outer conductors and insulators. The modular and standardized mechanism design has been verified for reliability and stability, reducing downtime and maintenance needs. The machine’s operation is intuitive, allowing operators to master it quickly with minimal training.
The FAKRA Female Outer Conductor Auto Assembler uses standard parts from domestic and foreign first-line brands to ensure superior performance and durability. Servo drive is preferred, delivering high-speed operation, silent performance, and energy efficiency. These high-quality components ensure precise control of each assembly step, reducing errors and improving product consistency. The careful selection of parts also extends the machine’s service life, providing long-term value for enterprises.
With its advanced design and premium components, the machine achieves a production capacity of 1400PCS/H (at a 90% utilization rate) and a defective rate of ≤2% (excluding defects caused by incoming materials). It operates on an AC220V/50HZ power supply and requires a working air pressure of 5-6KG (water-free and oil-free), compatible with standard factory facilities. Whether used in medium or large-scale production, this auto assembler delivers consistent efficiency and quality, helping manufacturers meet the growing demand for high-performance FAKRA connectors in the automotive industry.
Capacity | 1400PCS/H (utilization rate 90%) |
Utilization rate | >90% |
Defective rate | ≤2% (except for defects caused by incoming materials) |
Applicable products | according to relevant drawings |
Dimensions | L1600mm/W1600mm/H1900mm (actual dimensions refer to the final 3D) |
Working voltage | AC220/50HZ |
Working air pressure | 5-6KG (water-free and oil-free) |
Working environment temperature | -10 degrees to 50 degrees |
Working environment humidity | 20 to 90% |
Safety device | leakage protection, emergency stop |
