For manufacturers in the automotive and electronics industries, the Automotive Board Connector Assembly Tester is an indispensable tool for assembling and testing board connectors. This automated production equipment combines advanced technology with user-centric design, ensuring efficient, reliable, and high-quality output. Let’s explore its key attributes:
The Automotive Board Connector Assembly Tester features a customizable industrial design that adapts to diverse production needs. The machine cover is equipped with access control, a critical safety feature that restricts access to moving parts, protecting operators from potential hazards. The industrial gray paint not only provides a durable, scratch-resistant surface but also gives the equipment a professional, cohesive look that complements modern factory settings.
With dimensions of L6500mm/W2200mm/H1950mm, the equipment is designed to maximize functionality without occupying excessive space. The layout is optimized for easy access to all operational areas, simplifying loading, unloading, and routine checks. Additionally, safety devices such as leakage protection and emergency stop buttons are prominently placed, ensuring quick response in case of unexpected issues. The transparent observation windows (where applicable) allow operators to monitor the assembly and testing process in real time, enhancing process control.

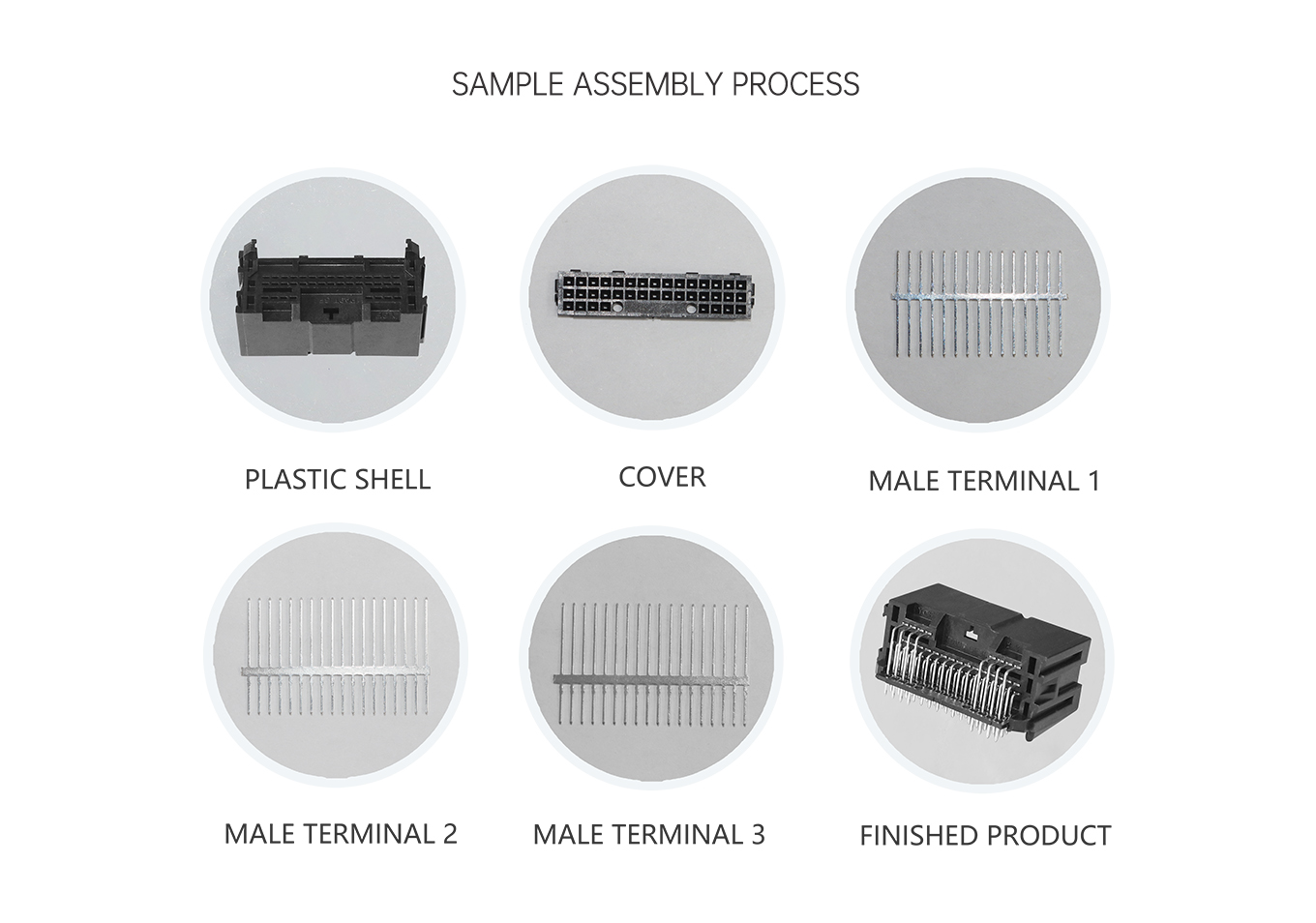

At the core of the Automotive Board Connector Assembly Tester is a large vibration plate feeder and four sets of hanging reel feeder mechanisms. These feeding systems ensure a steady, uninterrupted supply of components, eliminating bottlenecks in the production line. The equipment integrates a range of functional mechanisms, including transferring rubber cores, plugging terminals, pressing terminals, bending, blowing and suction dust removal, electrical testing, CCD testing, defective elimination, laser coding, and stacking packaging.
The modular and standardized mechanism design guarantees reliable operation, with a utilization rate of ≥90% and a yield rate of ≥98% (excluding defective incoming materials). Each functional module is calibrated to work in perfect harmony, ensuring precise assembly of board connectors—which consist of sockets (female connectors) and plugs (male connectors) for circuit board connections. The bending and pressing mechanisms ensure secure terminal placement, while the dust removal system maintains component cleanliness, preventing contamination-related defects. The laser coding function adds traceability, allowing for easy product tracking throughout the supply chain.
The Automotive Board Connector Assembly Tester relies on standard parts from domestic and foreign first-line brands. This commitment to quality components ensures consistent performance and minimizes maintenance needs. From the feeder mechanisms to the testing probes, every part is selected for its durability and precision, reducing the risk of unplanned downtime and extending the equipment’s operational lifespan.
Servo drive technology is a key component of the equipment, delivering high-speed operation that contributes to a production capacity of 900 PCS/H. Unlike traditional drives, servo drives offer precise control over movement, ensuring accurate terminal plugging and component alignment. The silent operation reduces noise pollution in the factory, while the energy-saving design lowers power consumption, cutting down on operational costs. Whether handling high-volume production runs or small-batch orders, the servo drive maintains optimal efficiency, making the equipment a versatile and cost-effective solution.
Production capacity | 900 PCS/H |
Utilization rate | ≥ 90% |
Yield rate | ≥ 98% (except for defective incoming materials) |
Appearance color | Industrial gray paint |

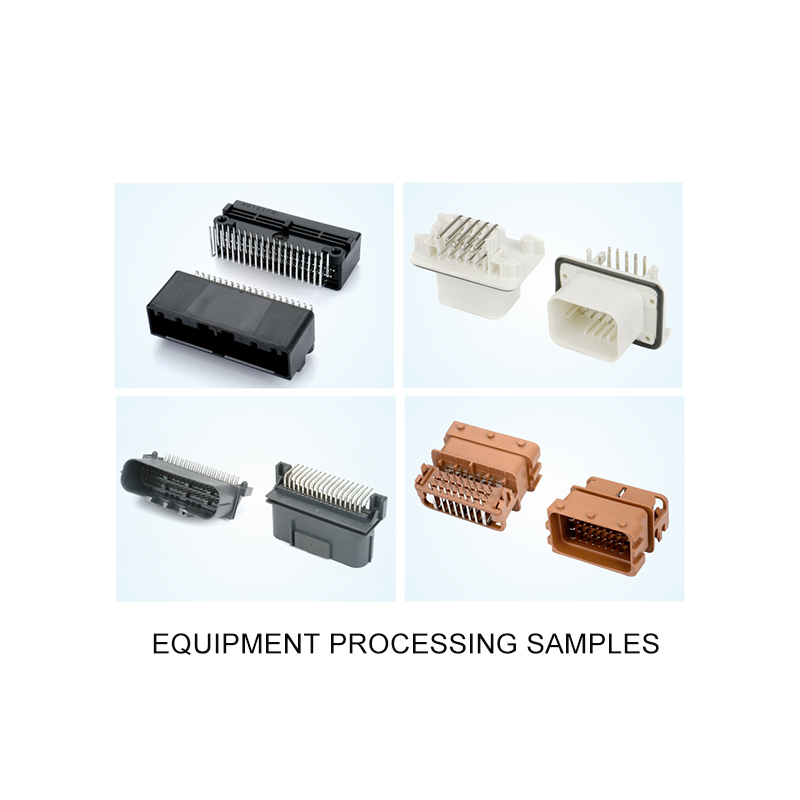

Applicable products | Board connector |
Dimensions | L6500mm/W2200mm/H1950mm |
Power supply voltage | AC 220V/50HZ |
Working air pressure | 5-6KG (water-free and oil-free) |
Working environment temperature | -10 degrees to 50 degrees |
Working environment humidity | 20 to 90% |
Safety device | Leakage protection, emergency stop |
