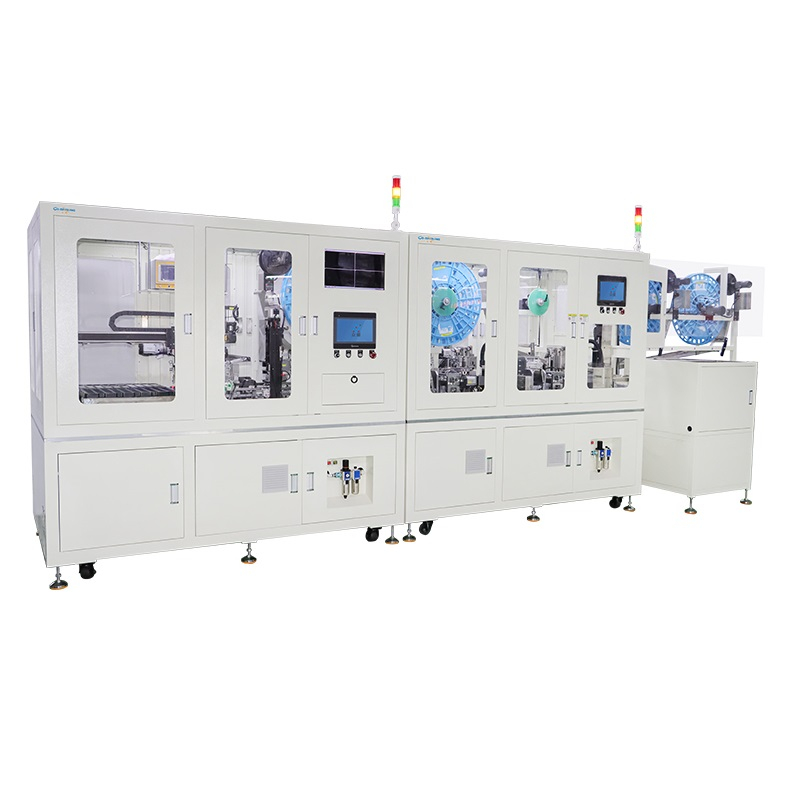

As a non-standard custom solution, the Automatic Automotive Board Connector Assembly Tester is exclusively developed for the precise assembly of automotive PCB connectors, also renowned as reliable automotive board-end connector assembly and testing equipment. This equipment integrates smart design, stable performance, and user-friendly operation, making it a game-changer for manufacturers aiming to enhance productivity and product quality. With its ingenious structure and advanced control system, it stands out in the automotive electronics industry by meeting the rigorous demands of high-density, miniaturized PCB connector assembly.
The Automatic Automotive Board Connector Assembly Tester boasts a well-thought-out external design that balances functionality, safety, and visual appeal. Its industrial design is fully customizable to align with different workshop aesthetics and brand identities, ensuring it seamlessly fits into various production environments.
A key safety feature is the access control on the machine cover – it not only prevents unauthorized operation but also facilitates easy access for routine checks, striking a perfect balance between safety and operability. The equipment is finished with industrial gray paint, a color that resists stains and maintains a professional look even after long-term use.
In terms of dimensions, it measures L4900mm × W1600mm × H1900mm (subject to actual size), a compact footprint that optimizes workshop space utilization without compromising operational range. To further ensure workplace safety, it is equipped with essential safety devices including leakage protection and an emergency stop button, providing double protection for operators and production continuity.
The mechanism design of the Automatic Automotive Board Connector Assembly Tester is a highlight that sets it apart from conventional equipment, focusing on modularity, efficiency, and long-term stability.
Adopting a modular, standardized design approach, every component of the equipment has undergone rigorous reliability verification. This design not only simplifies maintenance and part replacement but also ensures consistent performance across different production batches, reducing the risk of unexpected downtime.
Externally, it is equipped with a large vibration plate feeder that ensures a steady and efficient supply of raw materials. Internally and externally, the integrated reel feeding mechanism operates without any mutual interference, thanks to its compact layout. The entire machine is controlled by a high-precision PLC system, paired with an intuitive touch screen – this combination makes operation and maintenance simple and fast, even for less experienced operators.
With a production capacity of 8 seconds per piece and a utilization rate of 90%, the equipment significantly accelerates connector assembly speed. It achieves a yield rate of ≥99.5% (excluding defective incoming materials), minimizing waste and reducing production costs. What’s more, it can maintain a stable operating state for extended periods, greatly reducing the need for frequent maintenance and repairs, thus maximizing production uptime.
The performance of the Automatic Automotive Board Connector Assembly Tester is built on the quality of its core components, as it exclusively uses standard parts from first-line domestic and foreign brands. This commitment to high-quality components ensures the equipment’s durability and consistent performance in harsh industrial environments.
Production capacity | 8S/piece |
Utilization rate | 90% |
Yield | ≥ 99.5% (except for defective incoming materials) |
Appearance color | Industrial gray paint body |
Dimensions | L4900mm/W1600mm/H1900mm (subject to actual size) |
Power supply voltage | AC 220V/50HZ |
Working air pressure | 0.4～0.6Mpa |
Working environment temperature | -10 degrees to 50 degrees |
Working environment humidity | 20 to 90% |
Safety device | Leakage protection, emergency stop |
