As a premier manufacturer and supplier of automated industrial solutions, we present the Advanced Board-side Connector Assembly Tester. Engineered for high-speed precision, this system streamlines the complex production of Fakra board-end connectors.
Fully automated continuous operation
High-yield precision manufacturing capability
Integrated comprehensive testing and packaging
Robust industrial-grade structural design
| Quantity: | |
|---|---|
The Advanced Board-side Connector Assembly Tester is a state-of-the-art automated production line meticulously engineered for the demanding requirements of automotive high-speed board-end connectors. Stepping onto the production floor, operators will immediately notice the sleek industrial gray (7035) paint finish and the remarkably quiet operation, a direct result of premium servo-driven mechanisms replacing traditional, noisy mechanical linkages. This system takes raw components—from dielectric vibration plates to precision plastic shells, zinc alloys, insulators, and center pins—and transforms them into fully tested, packaged connectors in one seamless, uninterrupted flow. By eliminating manual transfer stations, it drastically reduces human error, prevents physical contamination, and ensures every single connector meets the rigorous standards required for modern automotive wiring harnesses. The tactile precision of the automated assembly, combined with rigorous GT and CCD comprehensive testing, guarantees that your production line delivers flawless signal transmission components. This equipment does not just assemble parts; it fundamentally upgrades your manufacturing capability, driving down per-unit costs while elevating the consistency and reliability of your final output, ultimately protecting your brand's reputation in a highly competitive market.
Production capacity | ≥1800PCS/H (utilization rate: ≥95%) |
Yield | 99.5% (except for defective incoming materials) |
Appearance color | Industrial gray (7035) paint |

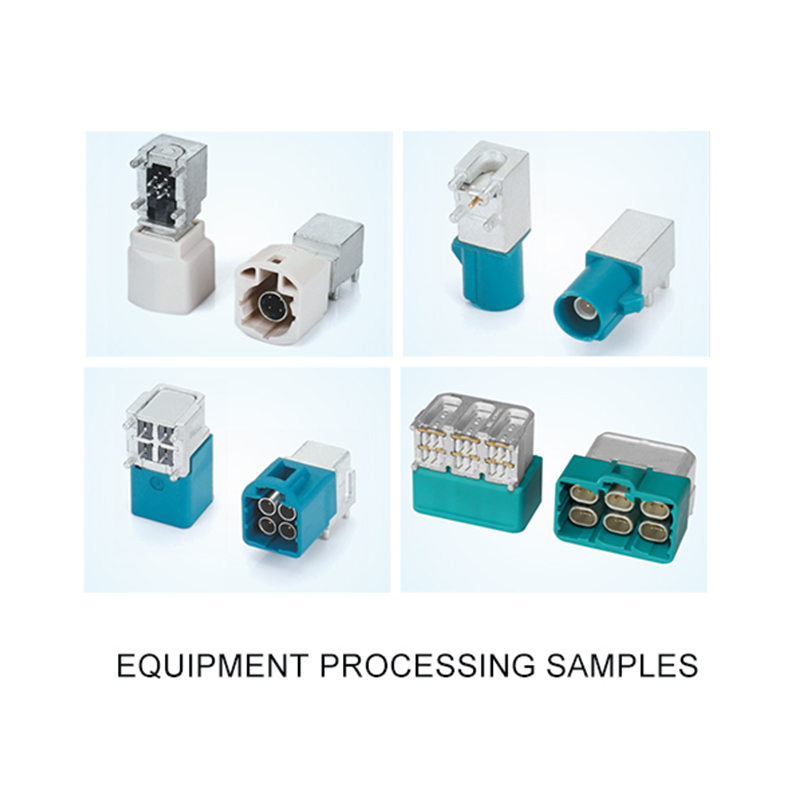

Applicable products | Fakra high-speed board-end connector |
Dimensions | L7000mm/W1500mm/H1850mm |
Power supply voltage | AC220/50HZ |
Working air pressure | 5-6KG (water-free and oil-free) |
Working environment temperature | -10 degrees to 50 degrees |
Working environment humidity | 20 to 90% |
Our assembly and testing equipment is designed to transform raw manufacturing potential into a streamlined, highly profitable reality. By focusing on precision engineering and user-centric design, this system offers unparalleled advantages for large-scale production environments.
Silent and Smooth Operation: Utilizing top-tier servo drives, the machine operates with a steady hum rather than a mechanical clatter, creating a more comfortable, focused, and safer environment for your operators.
Modular Architecture: The standardized mechanism design allows for rapid component replacement and hassle-free maintenance, ensuring your production line adapts swiftly to future technological upgrades without major overhauls.
Flawless Material Handling: The integration of dielectric vibration plate feeding ensures that delicate components like zinc alloys and center pins are handled with a gentle touch, preventing micro-abrasions and structural damage before assembly even begins.
Intelligent Access Control: The physical machine cover is equipped with an advanced access control system, preventing unauthorized mechanical adjustments and ensuring absolute safety during high-speed operations.
Engineered to meet the stringent demands of modern automotive manufacturing, this equipment excels across multiple operational dimensions, ensuring your facility remains at the cutting edge of assembly technology.
Tailor-made for automotive high-speed board-end connectors, this automated production line achieves an impressive capacity of ≥1800PCS/H. With an equipment utilization rate exceeding 95%, it effortlessly handles massive continuous production runs. This relentless efficiency significantly reduces the need for manual intervention, thereby slashing the manufacturing cost per unit and accelerating your time-to-market.
Quality is built into the very DNA of this machine. The system deeply integrates GT testing and a CCD visual comprehensive inspection system to monitor the production process in real-time. Any defective product is automatically identified and rejected, ensuring a finished product yield of 99.5%. This zero-compromise approach guarantees the absolute reliability of signal transmission in automotive wiring harnesses and electronic components.

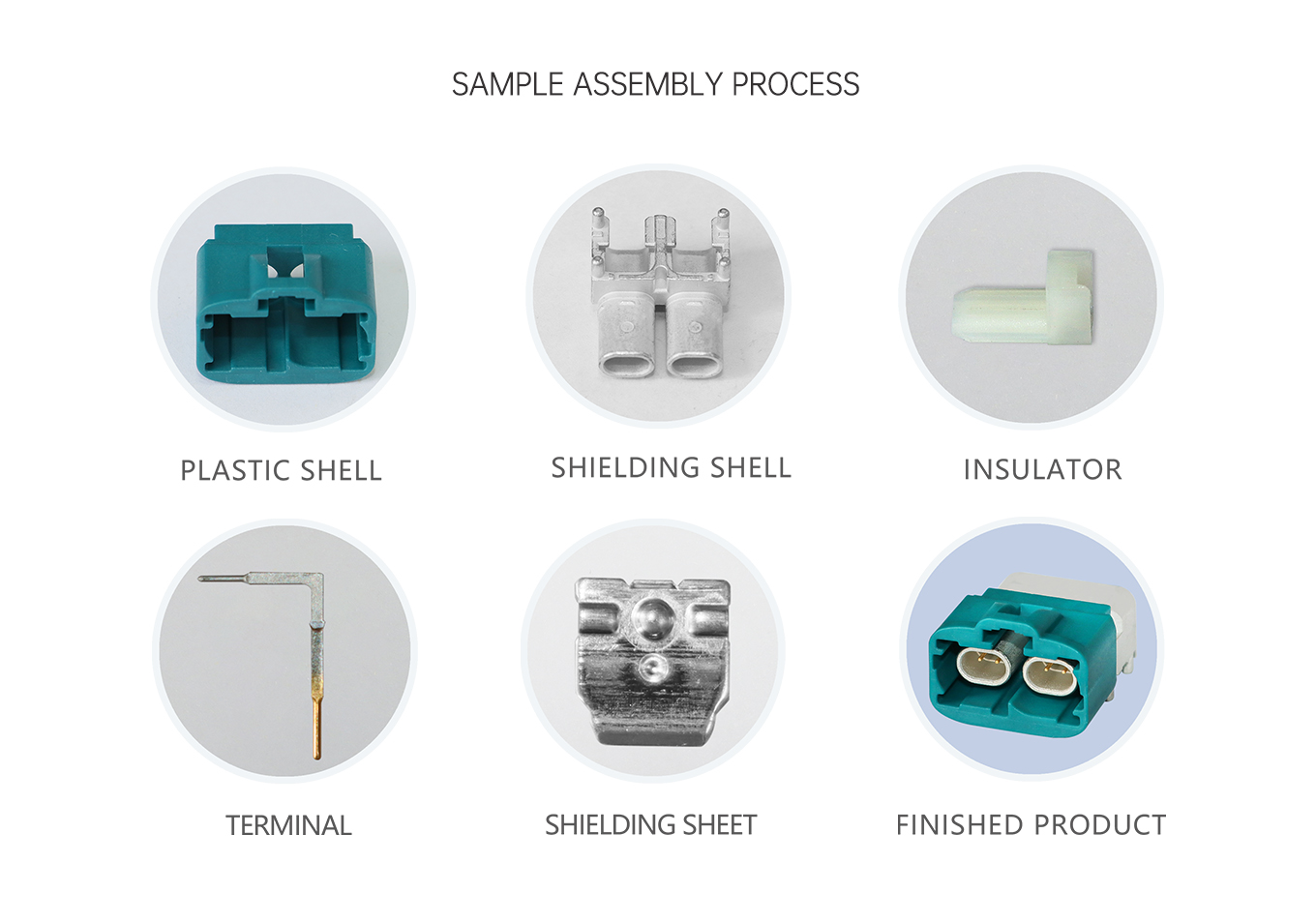

This machine represents the pinnacle of workflow optimization. It seamlessly integrates the feeding of dielectric vibration plates, the precision assembly of plastic shells, zinc alloys, insulators, and center pins, alongside comprehensive testing and carrier tape packaging. By unifying these steps into a single continuous flow, it completely eradicates the efficiency losses and quality risks traditionally associated with manual transfer between separate workstations.
Reliability is the foundation of profitable manufacturing. The equipment utilizes a modular, standardized mechanism design that has been rigorously verified through long-term practical application. All core components, including the standard servo drive systems, are sourced from top-tier global brands. This ensures the machine remains energy-efficient, operates quietly at high speeds, and maintains exceptional stability during long-term continuous production, drastically reducing maintenance frequency.
Precision-engineered to accommodate Fakra and other automotive high-speed board-end connectors, this tester boasts extensive industry applicability. It is a vital asset for high-standard core sectors, including traditional automotive manufacturing (wiring harnesses, in-vehicle communication, and navigation systems), automotive electronics (ECUs and sensors), and the rapidly expanding new energy vehicle market (power, charging, and battery management systems).
Form meets function in this thoughtfully designed system. The compact and logical industrial-grade layout, finished in an elegant industrial gray (7035), occupies a moderate footprint, making it easy to flexibly integrate into your existing production lines. Furthermore, the machine enclosure is outfitted with a smart access control system and multiple safety guards, perfectly balancing the absolute safety of your operating personnel with aesthetic and practical excellence.
Selecting the right equipment partner is a critical decision that impacts your operational success for years to come. We provide more than just machinery; we deliver comprehensive manufacturing solutions designed to elevate your market position and streamline your workflow.
Proven Engineering Excellence: Years of dedicated research and development in automation have culminated in equipment that performs flawlessly under the most demanding industrial conditions.
Uncompromising Component Selection: We refuse to cut corners. By exclusively utilizing internationally recognized premium components, we guarantee that our machines outlast and outperform standard market offerings.
Tailored Integration: We understand that no two production floors are identical. Our systems are designed for flexible deployment, ensuring a smooth transition and immediate productivity gains upon installation.
Dedicated Lifecycle Support: From initial consultation and installation to ongoing maintenance and a comprehensive 12-month warranty, our technical experts stand ready to ensure your operations never miss a beat.
To help you better understand the technical capabilities and operational requirements of our equipment, we have compiled answers to the most common inquiries from industrial procurement and engineering teams.
What specific types of connectors is this equipment designed to process?
The system is specifically engineered for Fakra high-speed board-end connectors, ensuring precise handling, assembly, and testing tailored to the exact dimensional and material specifications of these critical automotive components.
How does the CCD visual inspection system contribute to the high yield rate?
The integrated CCD system captures high-resolution images of every assembled unit in real-time, instantly identifying microscopic misalignments, surface defects, or missing components. This allows the machine to automatically reject substandard pieces before packaging, maintaining a strict 99.5% yield of flawless products.
What are the facility requirements for optimal operation of this machine?
The equipment requires a stable AC220/50HZ power supply and a dedicated compressed air line delivering 5-6KG of strictly water-free and oil-free air. The operating environment should be maintained between -10℃ and 50℃ with a relative humidity of 20% to 90%.
Can the machine's modular design accommodate future production changes?
Yes, the standardized, modular architecture is specifically designed for long-term adaptability. It allows for rapid replacement of specific assembly or testing modules, enabling your facility to upgrade capabilities or adapt to new connector iterations without the need to replace the entire production line.
How does the equipment ensure the safety of the operators during high-speed production?
The entire assembly and testing area is enclosed within a robust machine cover equipped with an intelligent access control system. The machine will automatically halt operations if the enclosure is breached or opened during a cycle, providing absolute protection against moving parts and pneumatic mechanisms.
