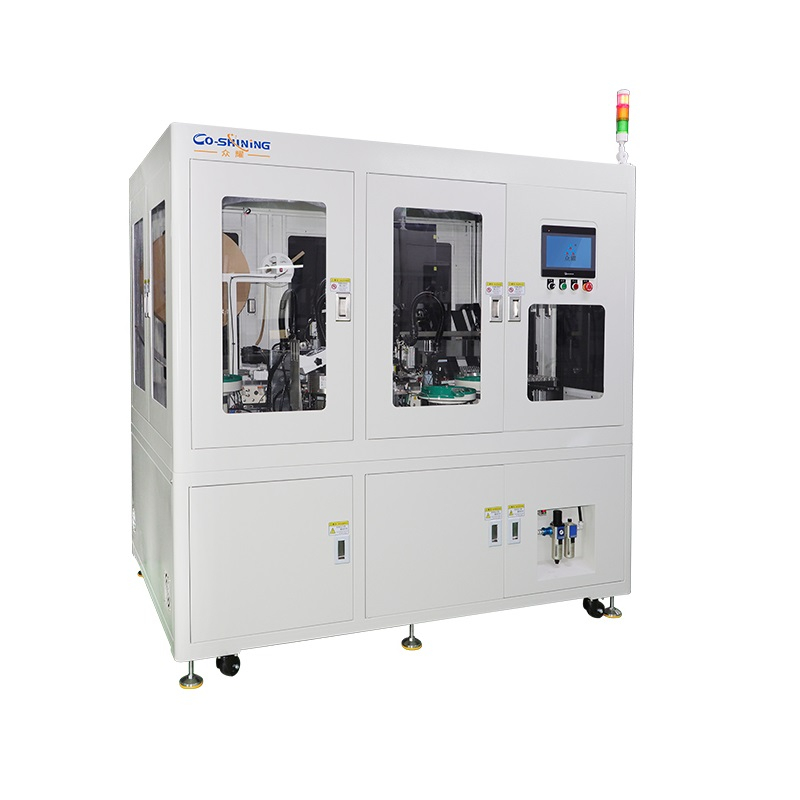

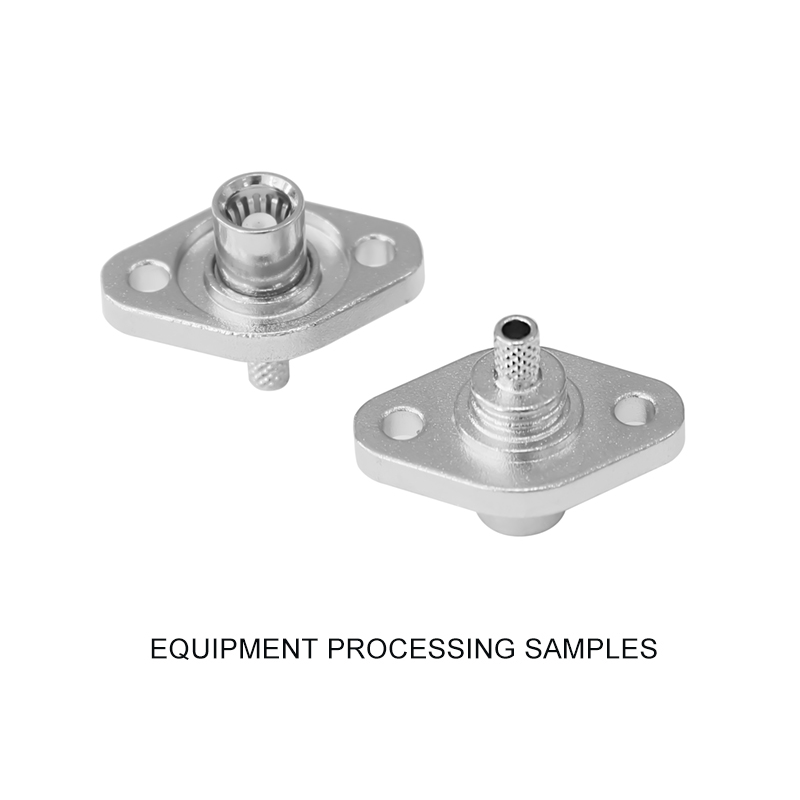

The Accurate SMB Straight Connector Assembly Tester is a meticulously engineered non-standard automated system designed to redefine the manufacturing landscape of SMB straight connectors. Stepping onto the factory floor, facility managers will immediately notice the quiet, rhythmic hum of its premium servo drives—a testament to the low-friction, high-speed mechanics operating flawlessly beneath its sleek industrial exterior. This system eliminates the chaotic, labor-intensive bottlenecks of manual assembly by introducing a harmonized, left-to-right continuous workflow. By autonomously managing the delicate handling of front bodies, insulators, sealing rings, and zinc alloy shells, the equipment eradicates human error and prevents the micro-contaminations that often plague sensitive radio frequency components. The tactile precision of the crown spring loading and pressing mechanisms ensures every single connection is seated with absolute structural integrity. Furthermore, the integrated blowing and suction dust removal system maintains an immaculate internal processing environment, safeguarding the pristine condition of every connector before it seamlessly transitions to the blister box packaging stage. For enterprises seeking to aggressively scale operations without inflating overhead costs, this machine offers a transformative leap in output consistency, dramatically reducing cycle times while elevating the final product's dimensional and functional perfection.
Production capacity | UPH~1200PCS/S (utilization rate 90%) |
Defective rate | ≤1% (except for defective incoming materials) |
Applicable products | according to relevant drawings |
Assembly machine size | L2000mm/W1800mm/H1950mm (actual size refers to the final 3D) |
Working voltage | AC220/50HZ |
Working air pressure | 5-6KG (water-free and oil-free) |
Working environment temperature | -10 degrees to 50 degrees |
Working environment humidity | 20 to 90% |
Safety device | leakage protection, emergency stop |
Deploying this assembly tester translates directly into elevated operational excellence. Every component and mechanism is selected to ensure that your production floor operates at peak efficiency, minimizing downtime while maximizing output quality.
Intelligent Synchronization: The PLC control system acts as the brain of the operation, ensuring that every pneumatic actuator and servo motor fires in perfect harmony, eliminating mechanical collisions and material jams.
Immaculate Processing Environment: The built-in blowing and suction dust removal mechanism guarantees that microscopic debris is actively cleared from the assembly zone, protecting the sensitive contact points of the SMB connectors.
Seamless Packaging Transition: Unlike standalone assemblers, this unit automatically feeds finished, verified connectors directly into blister box packaging, readying them for immediate shipment and reducing secondary handling.
Intuitive Operator Interface: Designed with user experience in mind, the control panel allows technicians to monitor real-time throughput, adjust parameters on the fly, and receive instant diagnostic feedback.
In the competitive landscape of large-scale connector manufacturing, output volume and yield rates dictate market dominance. This equipment is engineered specifically to address the rigorous demands of continuous enterprise production, ensuring your facility meets tight delivery schedules with ease.
Exceptional Throughput: Achieving an impressive production capacity of approximately 1200 pieces per hour, the machine maintains a 90% utilization rate, ensuring a relentless and steady flow of finished goods.
Strict Defect Control: By mechanizing the most delicate assembly phases, the system strictly controls the assembly defective rate to 1% or less (excluding incoming material flaws), directly preserving your profit margins.
Labor Optimization: The sheer speed and reliability of the automated workflow mean that a single operator can oversee multiple machines, drastically reducing direct labor costs while multiplying your factory's output capacity.
Manual assembly of intricate RF connectors is fraught with inconsistencies, tactile errors, and slow cycle times. This assembly tester introduces a profound paradigm shift by completely automating the entire lifecycle of the connector build, from raw components to packaged perfection.

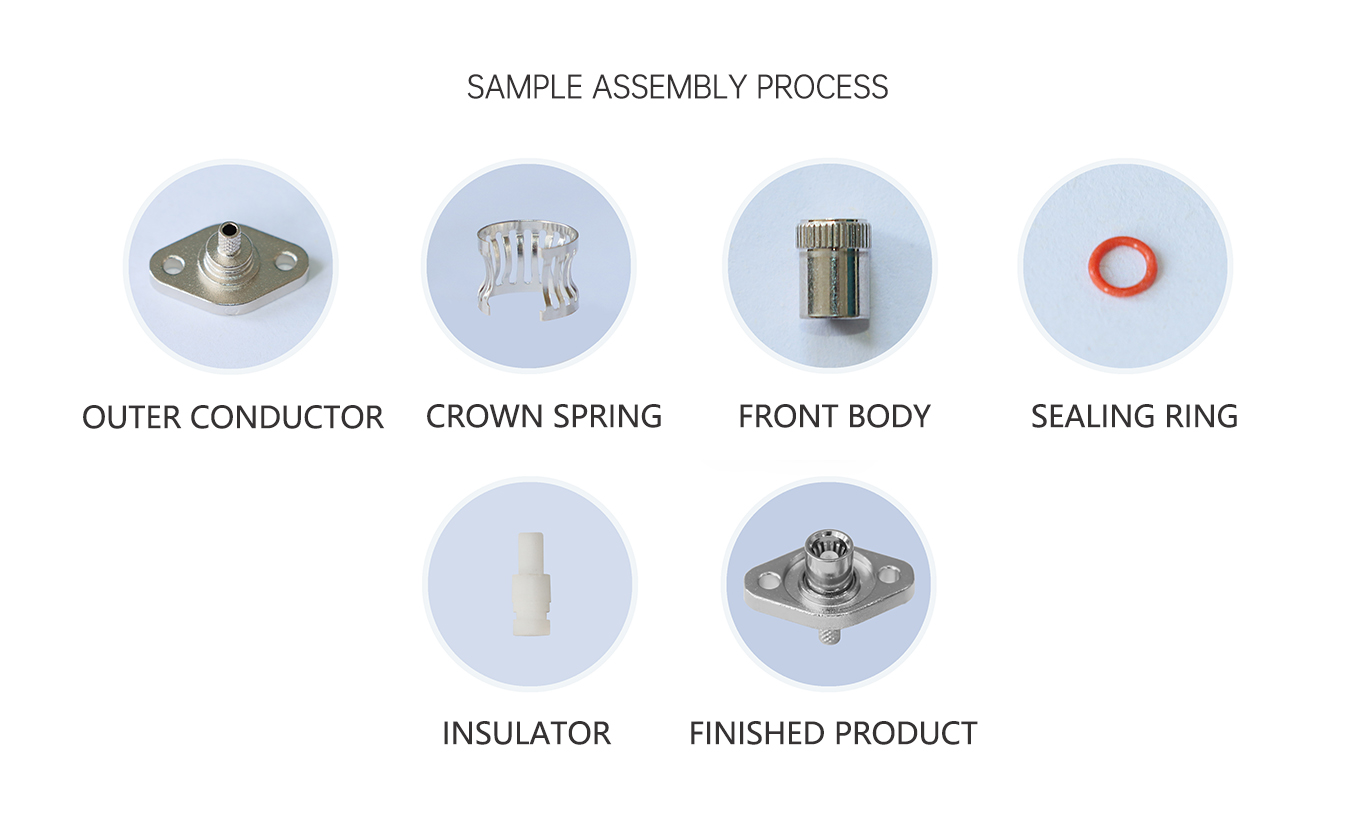

Vibration Plate Mastery: Custom-tooled vibration plates automatically orient and feed the front bodies, insulators, sealing rings, and zinc alloy shells with flawless rhythm, ensuring no component enters the line misaligned.
Precision Crimping: The crown spring loading and pressing stations apply exact, repeatable force. You can almost hear the satisfying, crisp mechanical click as each component is locked permanently into its housing.
End-to-End Autonomy: By integrating the final blister box packaging into the primary machine footprint, the system creates a true \"raw material in, finished product out\" environment, completely eliminating the risks associated with human handling.
For SMB connectors utilized in critical telecommunications and radio frequency applications, structural integrity and dimensional accuracy are non-negotiable. This machine acts as an uncompromising gatekeeper, scrutinizing every single unit before it is approved for packaging.
Dual-Stage Vision Inspection: The CCD1 visual system performs an initial rigorous check of component placement, while the CCD2 system specifically verifies the concentricity of the assembled unit, ensuring flawless signal transmission properties.
Tactile Height Verification: The integrated GT height detection module physically measures the seating depth of the internal components, guaranteeing that every connector meets exact engineering tolerances.
Zero-Defect Output: Any unit failing the multi-dimensional inspection is automatically segregated from the main line. This 100% online quality monitoring guarantees that your clients receive nothing but absolute perfection.
The true cost of manufacturing equipment is measured not just in initial investment, but in long-term uptime and maintenance requirements. We have constructed this tester using only the most robust, industry-proven architectures to guarantee decades of reliable service.
Premium Servo Actuation: Driven by core servo motors from globally recognized brands, the machine executes lightning-fast movements with whisper-quiet operation, significantly reducing ambient factory noise.
Energy-Efficient Operation: The advanced drive systems and optimized pneumatic pathways (requiring only 5-6 KG of water-free and oil-free air) ensure that power and compressed air consumption are kept to an absolute minimum.
Resilient in Harsh Environments: Engineered to perform flawlessly in ambient temperatures ranging from -10℃ to 50℃ and humidity levels between 20% and 90%, this machine thrives in diverse global manufacturing climates.
Protecting your workforce while maintaining a clean, professional factory aesthetic is a core philosophy behind our engineering process. This equipment seamlessly blends rigorous industrial safety standards with visually appealing, functional design.
Comprehensive Access Control: The machine cover is equipped with an intelligent access control system that immediately halts operation if breached, providing absolute peace of mind for facility safety managers.
Fail-Safe Electrical Architecture: Built-in leakage protection and strategically placed emergency stop buttons ensure that any power anomaly or operational hazard is neutralized instantly.
Space-Optimized Footprint: Despite its massive capabilities, the machine features a highly compact design (L2000mm x W1800mm x H1950mm), allowing for straightforward integration into tight production floors without requiring extensive layout modifications.
No two connector designs are perfectly identical, and rigid, off-the-shelf machinery often fails to accommodate proprietary engineering nuances. As a non-standard automated solution, this equipment is built around the philosophy of total adaptability.
Drawing-Specific Engineering: The entire feeding and assembly pathway is customized precisely to your specific SMB straight connector blueprints, ensuring a glove-like fit for your proprietary components.
Modular Maintenance: The standardized, modular mechanism design means that wear-and-tear parts can be swapped out in minutes rather than hours, keeping your production line moving with minimal interruption.
Future-Proof Expansion: As your product lines evolve, the flexible PLC architecture and modular physical layout allow for the integration of new inspection parameters or assembly steps without requiring a complete machine overhaul.
Partnering with the right equipment manufacturer is a strategic decision that impacts your operational success for years to come. We bring decades of specialized engineering expertise to your factory floor, ensuring you remain ahead of the production curve.
Proven Engineering Heritage: Our dedicated R&D teams possess deep, specialized knowledge in connector automation, translating complex assembly challenges into elegant, high-speed mechanical solutions.
Uncompromising Quality Standards: Every machine undergoes rigorous, multi-day stress testing in our facility before dispatch, ensuring it performs at peak capacity the moment it is powered on at your site.
Comprehensive Lifecycle Support: From initial 3D conceptualization to on-site commissioning and long-term technical support, we provide an end-to-end partnership that safeguards your capital investment.
Global Deployment Capability: Our equipment is designed to meet international electrical and safety standards, making it the ideal choice for multinational corporations standardizing their global production facilities.
To assist your engineering and procurement teams in their evaluation process, we have compiled detailed answers to the most critical technical questions regarding the Accurate SMB Straight Connector Assembly Tester.
How does the machine handle variations in the incoming zinc alloy shells?
The customized vibration plates are engineered with specific mechanical traps and sorting gates that reject severely malformed shells before they enter the assembly track. For minor dimensional variances within tolerance, the servo-driven assembly heads utilize adaptive force feedback to ensure secure seating without damaging the components.
Can the CCD vision systems be recalibrated for different connector models?
Yes. While the machine is tailored to specific SMB straight connector drawings, the vision system software allows quality control engineers to adjust tolerance thresholds, lighting parameters, and inspection regions of interest to accommodate minor design revisions or similar product variants.
What is the typical maintenance schedule for the pneumatic and servo components?
Thanks to the use of premium standard parts, daily maintenance is minimal, primarily involving the verification of the 5-6 KG water-free and oil-free air supply. We recommend a comprehensive inspection of servo belts, pneumatic seals, and linear guides every 3,000 operating hours to maintain the ≤1% defective rate and 1200 UPH capacity.
How does the blowing and suction dust removal system operate without displacing lightweight components?
The dust removal module utilizes precisely calibrated, directional micro-nozzles. It applies a localized, high-velocity burst of air to dislodge particulates, immediately followed by a synchronized vacuum extraction. This occurs while the connector is securely clamped in the indexing nest, ensuring zero component displacement.
Is it possible to integrate the machine's PLC data with our factory's existing ERP/MES systems?
Absolutely. The advanced PLC control system is equipped with standard industrial communication ports. Our software engineers can assist in mapping the data registers so your facility can monitor real-time UPH, defect ratios, and machine status directly from your centralized manufacturing execution system.
