The WTB Board Connector Automatic Assembler is a dedicated automatic terminal plug-in device engineered for WTB connectors, the critical components that bridge wires (Wire) to circuit boards (Boards) via pins and sockets. This equipment streamlines the entire assembly process—from terminal feeding to defective product elimination—making it a cornerstone for electronic manufacturing in industries like automobiles, smart phones, tablets, laptops, digital cameras, TVs, monitoring systems, medical equipment, and printers. With a production capacity of 600 PCS/H, utilization rate ≥ 90%, and yield rate ≥ 98% (excluding defective incoming materials), it delivers consistent performance that meets high-volume production demands.
The WTB Board Connector Automatic Assembler features customizable industrial design, allowing businesses to align the equipment’s look with their production site aesthetics or brand identity. The machine cover is equipped with an access control system, which not only simplifies operation but also enhances safety by restricting unauthorized access. Its overall structure balances functionality and visual appeal, with smooth lines and a robust build that ensures long-term reliability in harsh factory environments.
Crafted with space efficiency in mind, the equipment measures L2400mm/W800mm/H1950mm—compact enough to fit most production lines without sacrificing operational space. It comes in industrial gray paint as standard, a color chosen for its resistance to stains and wear, maintaining a professional appearance even after prolonged use. The ergonomic height and layout also reduce operator fatigue during daily operations.
The WTB Board Connector Automatic Assembler adopts a modular, standardized design approach that has been rigorously verified for reliability and stability. Each functional unit operates independently, making maintenance, upgrades, and troubleshooting faster and more cost-effective. This design also ensures consistent performance across different production batches, minimizing process variations.
All standard parts of the WTB Board Connector Automatic Assembler are sourced from leading domestic and foreign brands, ensuring compatibility, durability, and long service life. Critical components like bearings, sensors, and connectors undergo strict quality inspections to meet industrial-grade standards, reducing downtime caused by component failures.
The equipment prioritizes servo drive technology, which delivers three core benefits: high-speed operation that supports the 600 PCS/H production capacity, silent performance that improves the factory working environment, and energy-saving functionality that lowers long-term operational costs. The servo system also ensures precise control over each assembly step, contributing to the high yield rate and consistent product quality.
In addition to the access control system, the WTB Board Connector Automatic Assembler is equipped with leakage protection and emergency stop functions. These safety devices respond instantly to potential hazards, protecting operators and preventing equipment damage. The equipment also operates within a wide environmental range (-10℃ to 50℃ temperature, 20% to 90% humidity), adapting to diverse factory conditions.
Production capacity | 600 PCS/H |
Utilization rate | ≥ 90% |
Yield rate | ≥ 98% (except for defective incoming materials) |
Appearance color | Industrial gray paint |

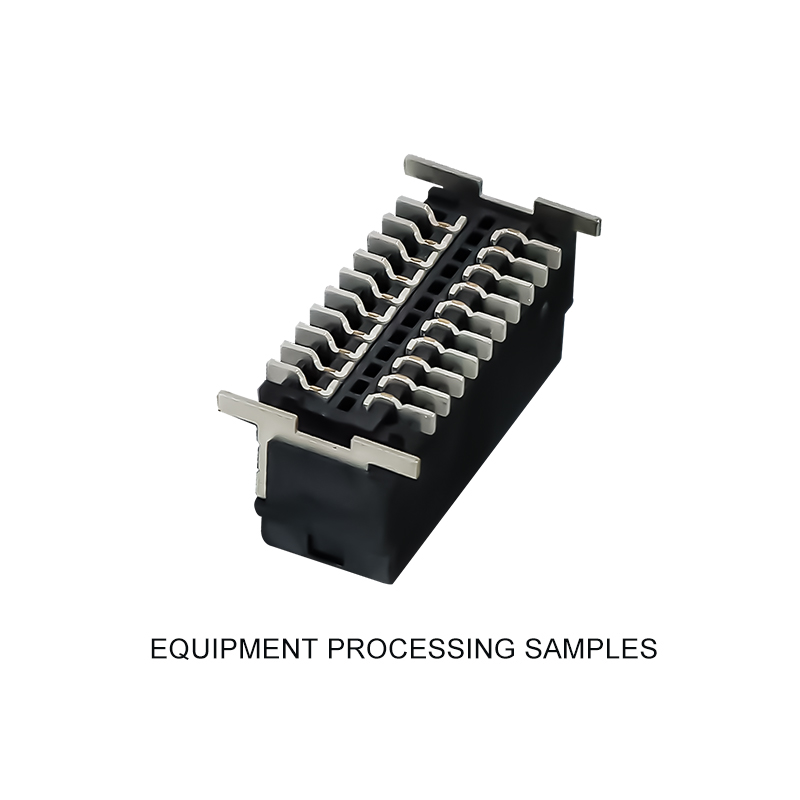

Applicable products | WTB connector |
Dimensions | L2400mm/W800mm/H1950mm |
Power supply voltage | AC 220V/50HZ |
Working air pressure | 5-6KG (water-free and oil-free) |
Working environment temperature | -10 degrees to 50 degrees |
Working environment humidity | 20 to 90% |
Safety device | Leakage protection, emergency stop |
