In the fields of power electronics, communications, and automotive power industries, the demand for efficient and precise High-Voltage PCB Connector Auto Assembler is soaring. This cutting-edge automated assembly equipment is tailored for PCB terminal blocks, integrating multiple core functions to redefine production efficiency and product quality. Below is a detailed breakdown of its key features:

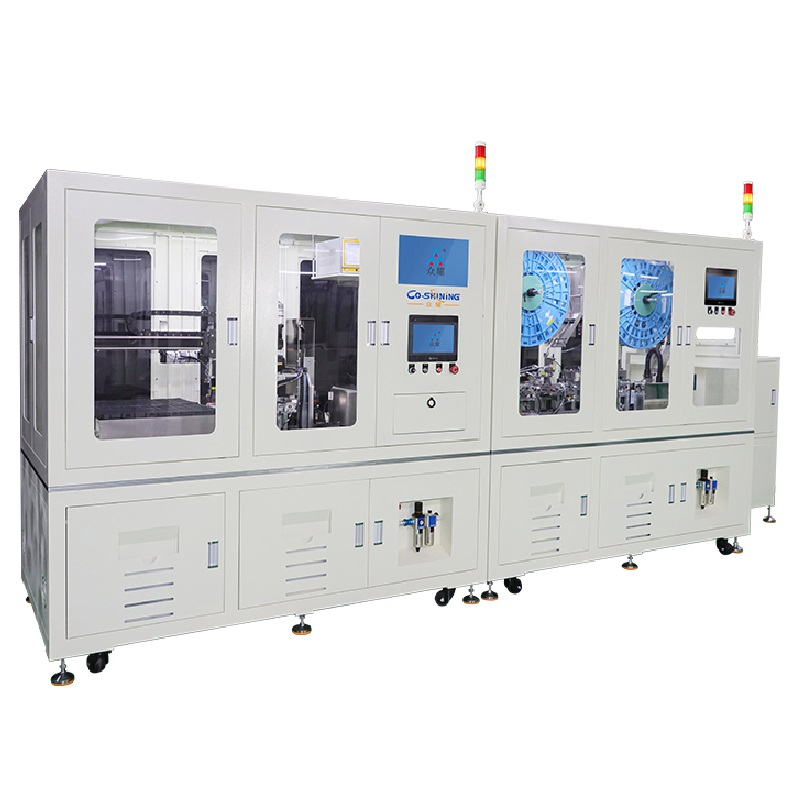

The High-Voltage PCB Connector Auto Assembler boasts a highly customizable appearance with professional industrial design. Whether you need to align the equipment with your factory’s overall style or meet specific operational space requirements, the design team can adjust details to fit your needs. The industrial gray paint finish not only resists wear and tear but also blends seamlessly into various production environments, maintaining a sleek and professional look.
Equipped with access control on the machine cover, the equipment prioritizes operator safety by preventing unauthorized access during operation. The user-friendly interface and intuitive controls make operation straightforward, even for new staff, while the sturdy structure ensures long-term reliability. With dimensions of L4000mm/W1100mm/H1950mm, it balances functionality with space efficiency, fitting into most standard production lines without extensive rearrangements.
The mechanism design adopts a modular, standardized mode that has undergone rigorous verification for stability and reliability. Each functional module—from automatic plug feeding and plug cutting to cam plugging and LEG insertion—operates independently yet synergistically. This modular approach simplifies maintenance: if a component requires inspection or replacement, you can disassemble the specific module without halting the entire production line, minimizing downtime.

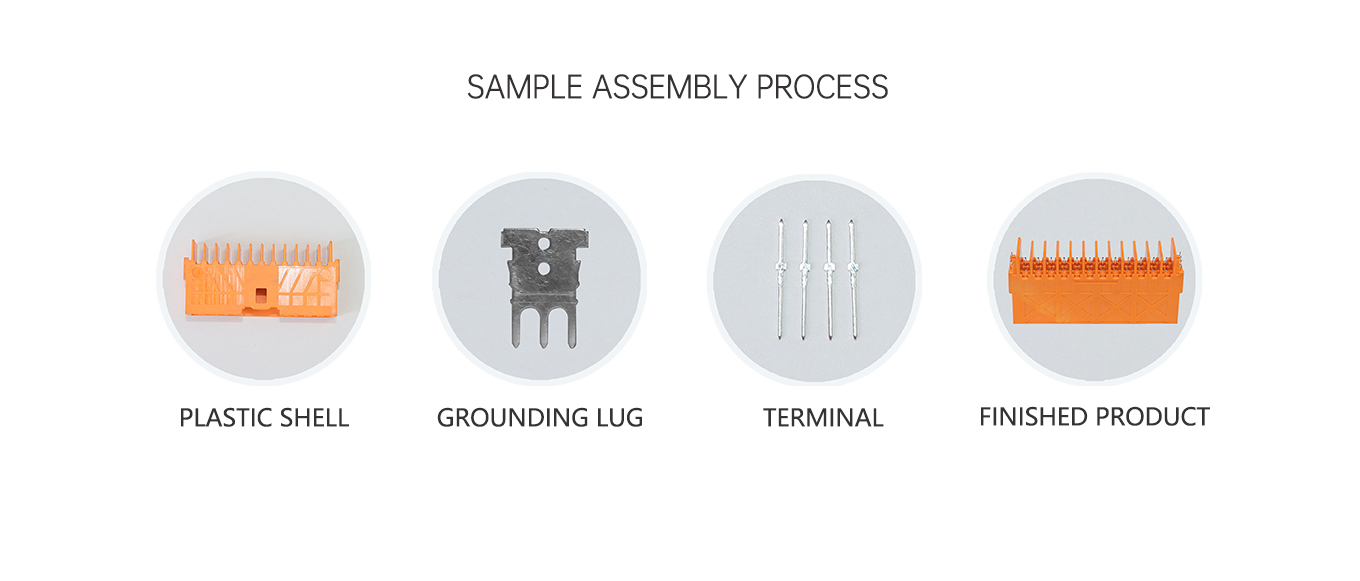

This High-Voltage PCB Connector Auto Assembler excels at integrating multiple critical processes into one seamless workflow. It handles automatic terminal insertion, LEG insertion, electrical testing, CCD testing, OK product dotting, defective discharge, and good product loading into trays. With a production capacity of 450PCS/H and a yield rate of 99.5% (excluding defective incoming materials), it ensures consistent output while reducing manual errors. The smooth coordination between modules guarantees accurate assembly and stable transmission of wiring harness signals, a key advantage for high-voltage applications.
To ensure peak performance, all standard parts of the High-Voltage PCB Connector Auto Assembler are sourced from domestic and foreign first-line brands. These components are known for their durability and precision, reducing the risk of breakdowns and extending the equipment’s service life. Every part, from small fasteners to core mechanical components, meets strict quality standards, laying the foundation for reliable long-term operation.
The equipment prioritizes servo drive technology, which delivers three core benefits: high-speed operation, silent performance, and energy efficiency. The servo drive ensures precise control over each assembly step, enhancing the accuracy of terminal insertion and LEG placement. Its silent operation creates a more comfortable working environment, while energy-saving features reduce power consumption, lowering your production costs over time. Whether running continuously or intermittently, the servo drive maintains consistent performance, making the equipment a cost-effective choice for high-volume production.
Production capacity | 450PCS/H |
Yield | 99.5% (except for defective incoming materials) |
Appearance color | Industrial gray paint |

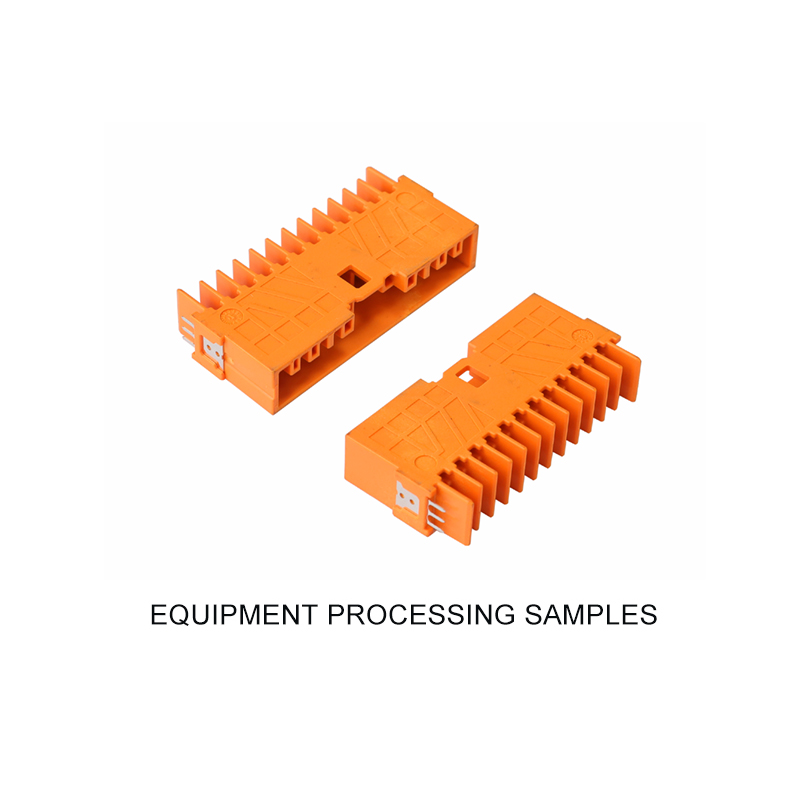

Applicable products | PCB terminal blocks |
Dimensions | L4000mm/W1100mm/H1950mm |
Power supply voltage | AC220/50HZ |
Working air pressure | 5-6KG (water-free and oil-free) |
Working environment temperature | -10 degrees to 50 degrees |
Working environment humidity | 20 to 90% |
