The Flexible Automotive Board Connector Pin Bender is a semi-automatic solution tailored for bending pins of automotive board-side connectors. Combining compact design with powerful functionality, it addresses the need for flexible and precise pin processing, catering to both single-pin and multi-pin/multi-row production requirements. Its user-friendly operation and stable performance make it an ideal choice for automotive component manufacturers seeking to improve production efficiency and product consistency.

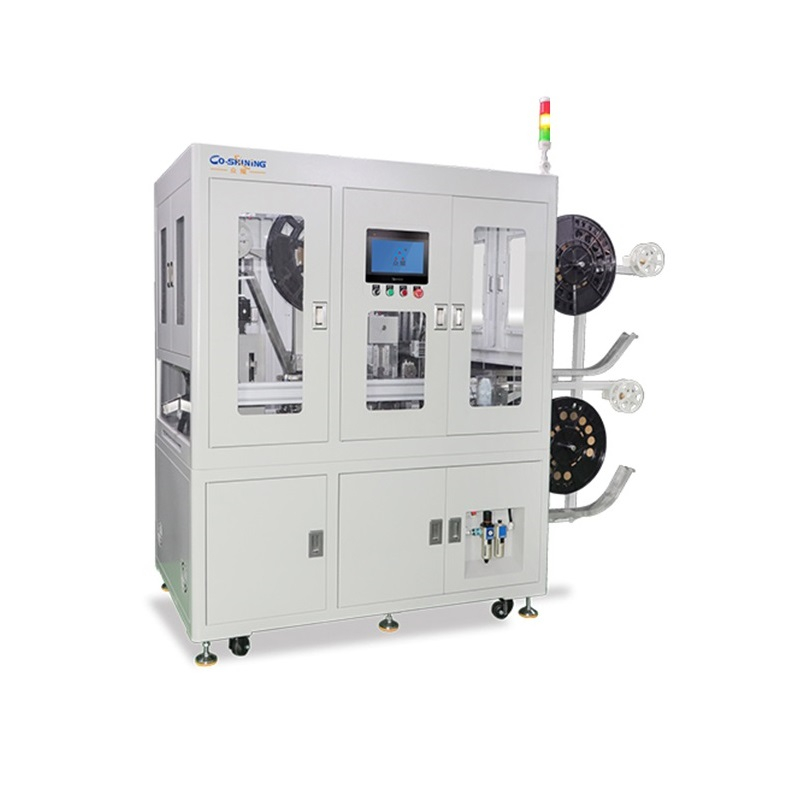

The Flexible Automotive Board Connector Pin Bender features a compact single-machine design that occupies minimal space, making it suitable for workshops with limited area. Its appearance supports industrial design customization, allowing enterprises to align the equipment with their brand image and factory aesthetics. The machine cover is equipped with an access control system, ensuring safe operation while enabling easy access for maintenance and part replacement. Finished with industrial gray paint, it offers excellent durability and resistance to industrial wear and tear.
With dimensions of L2400mm/W1000mm/H1950mm, the machine balances compactness with operational comfort, providing ample space for operators to load materials and retrieve finished products. Safety is a core design element, featuring leakage protection and an emergency stop button to prevent accidents and protect personnel. It operates efficiently in a working environment temperature range of -10 degrees to 50 degrees and a humidity range of 20 to 90%, adapting to various industrial conditions without compromising performance.
Adopting a right-in-left-out structure, the Flexible Automotive Board Connector Pin Bender optimizes material flow and production efficiency. The right side of the equipment is equipped with two reel feeding mechanisms for terminal feeding, ensuring continuous and stable material supply. Core feeding is manually operated by default, but it can be customized to vibration plate feeding to meet high-volume production needs. This flexible feeding design allows enterprises to adjust the machine according to their specific production requirements.

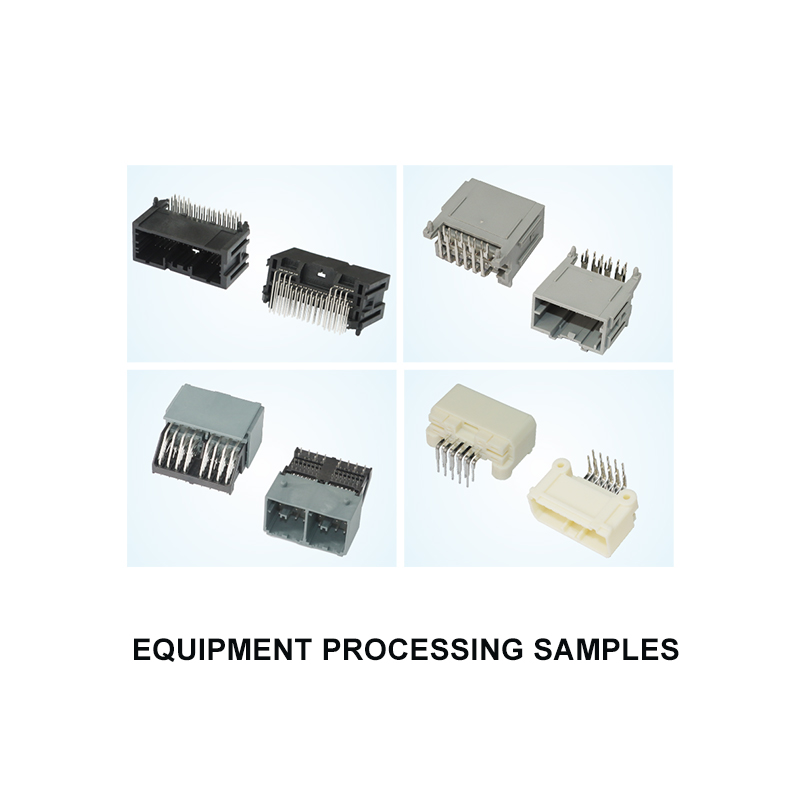

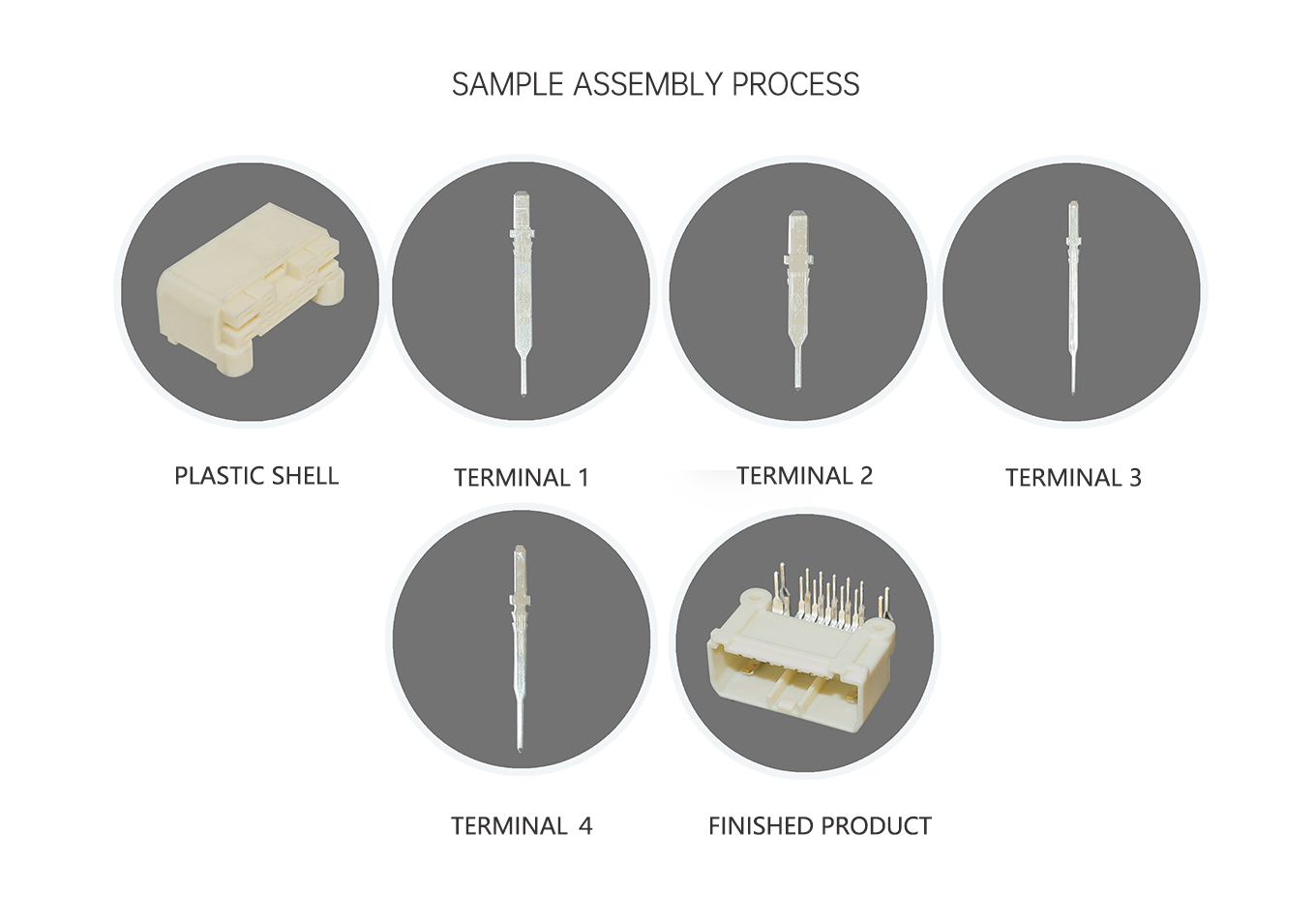

The machine’s internal workstations are designed to handle diverse pin processing tasks, including automatic terminal switching for multi-row products, one-stop single/multi-pin/multi-row pin insertion, one-stop single/multi-pin/multi-row bending, and finished product removal. This versatility eliminates the need for multiple specialized machines, reducing production line investment and simplifying workflow. The modular and standardized mechanism design has been thoroughly verified, ensuring reliable and stable operation even during long-term continuous production. Each workstation operates with high precision, guaranteeing consistent pin bending angles and positions.
To deliver superior performance, the Flexible Automotive Board Connector Pin Bender uses standard parts sourced from domestic and foreign first-line brands. Servo drive is prioritized, providing high-speed operation, silent performance, and energy efficiency. These premium components ensure precise control of pin insertion and bending, reducing errors and improving product quality. The use of top-tier parts also enhances the machine’s durability, lowering maintenance costs and extending its service life.
Backed by high-quality components and intelligent design, the machine achieves a production capacity of ≥4PCS/S with a utilization rate of ≥90% and a yield rate of ≥99% (excluding defective incoming materials). It operates on an AC 220V/50HZ power supply and requires a working air pressure of 5-6KG (water-free and oil-free), making it compatible with standard factory infrastructure. Whether processing single-pin connectors or complex multi-row products, this pin bender delivers consistent precision and efficiency, helping enterprises meet tight production schedules and quality standards.
Production capacity | ≥ 4PCS/S |
Utilization rate | ≥ 90% |
Yield rate | ≥ 99% (except for defective incoming materials) |
Appearance color | Industrial gray paint |
Applicable products | Automotive board connector |
Dimensions | L2400mm/W1000mm/H1950mm |
Power supply voltage | AC 220V/50HZ |
Working air pressure | 5-6KG (water-free and oil-free) |
Working environment temperature | -10 degrees to 50 degrees |
Working environment humidity | 20 to 90% |
Safety device | Leakage protection, emergency stop |
