ZY-CBL-202

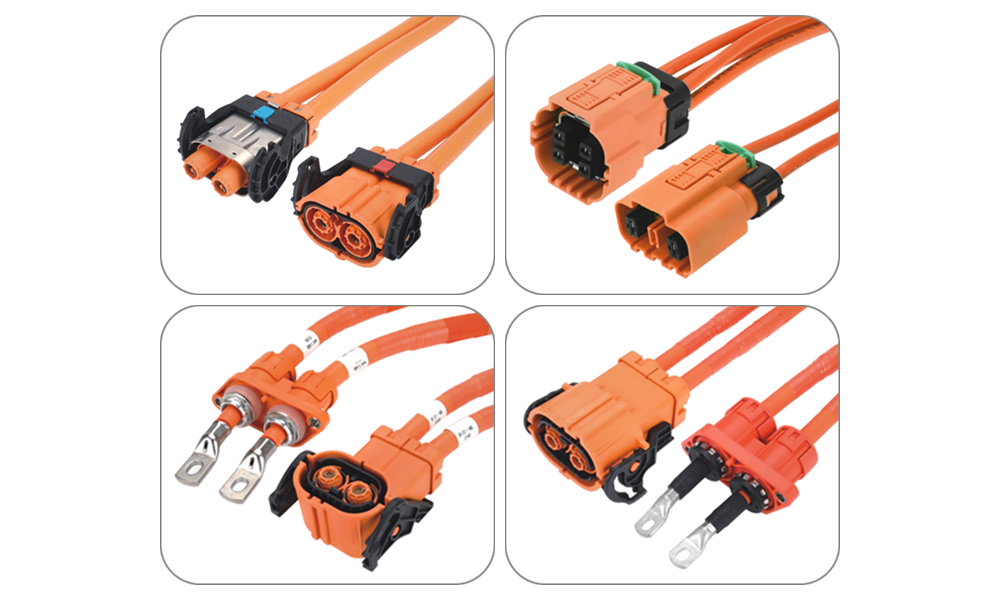

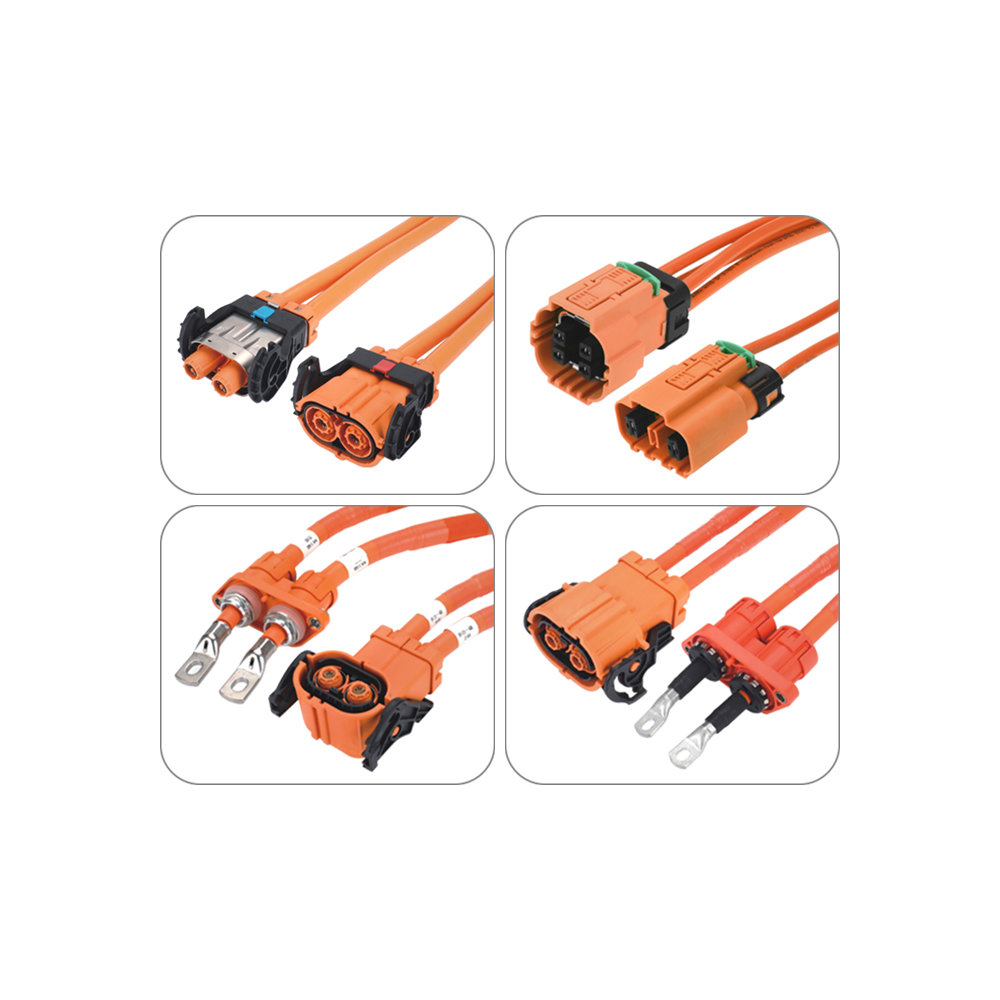

Samples produced by the equipment
Device features
It can be customized according to requirements.
● The appearance can be customized with an industrial design. The machine cover has access control, which is convenient to operate and safe and beautiful.
● The mechanism design adopts modular, modular and standardized mode, which has been verified to be reliable and stable.
● Standard parts are selected from well-known brands at home and abroad, and servo transmission is preferred for high-speed, quiet and energy-saving.
● It uses intelligent control, combined with CCD camera and robot, with high energy efficiency and high quality to save space.
● The equipment uses the upper computer to collect and detect data, and the production information can be traced, which is convenient for connection with MES.
Equipment parameters
Item | Technical parameter |
|---|---|
Efficiency | ≥180PCS/H（utilization rate：≥90%） |
Machine functions | fit/seal ring assembly, inner shielding ring assembly, stripping outer jack, cutting and removing aluminum foil, cutting and flipping braid, semi-stripping inner insulation, cleaning, CCD inspection, installing outer shielding ring/crimping/inspecting, terminal assembly/crimping/inspecting, heat shrink tube assembly/baking, housing sleeve assembly/inspecting, push back of seal ring/snap-fit/inspecting, product moving out, carrier returning |
